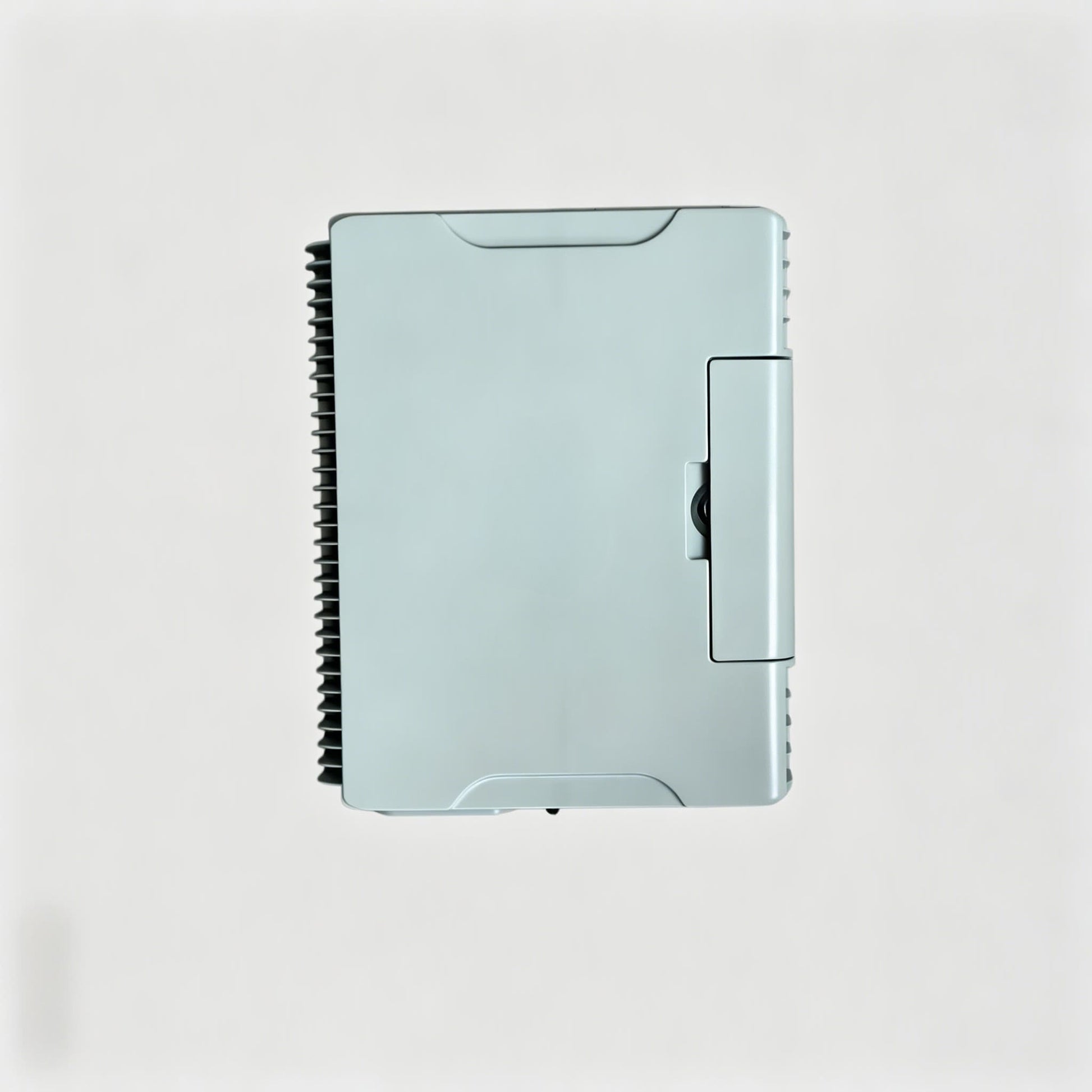

• 24-core-fiber-distribution-box-a2-main

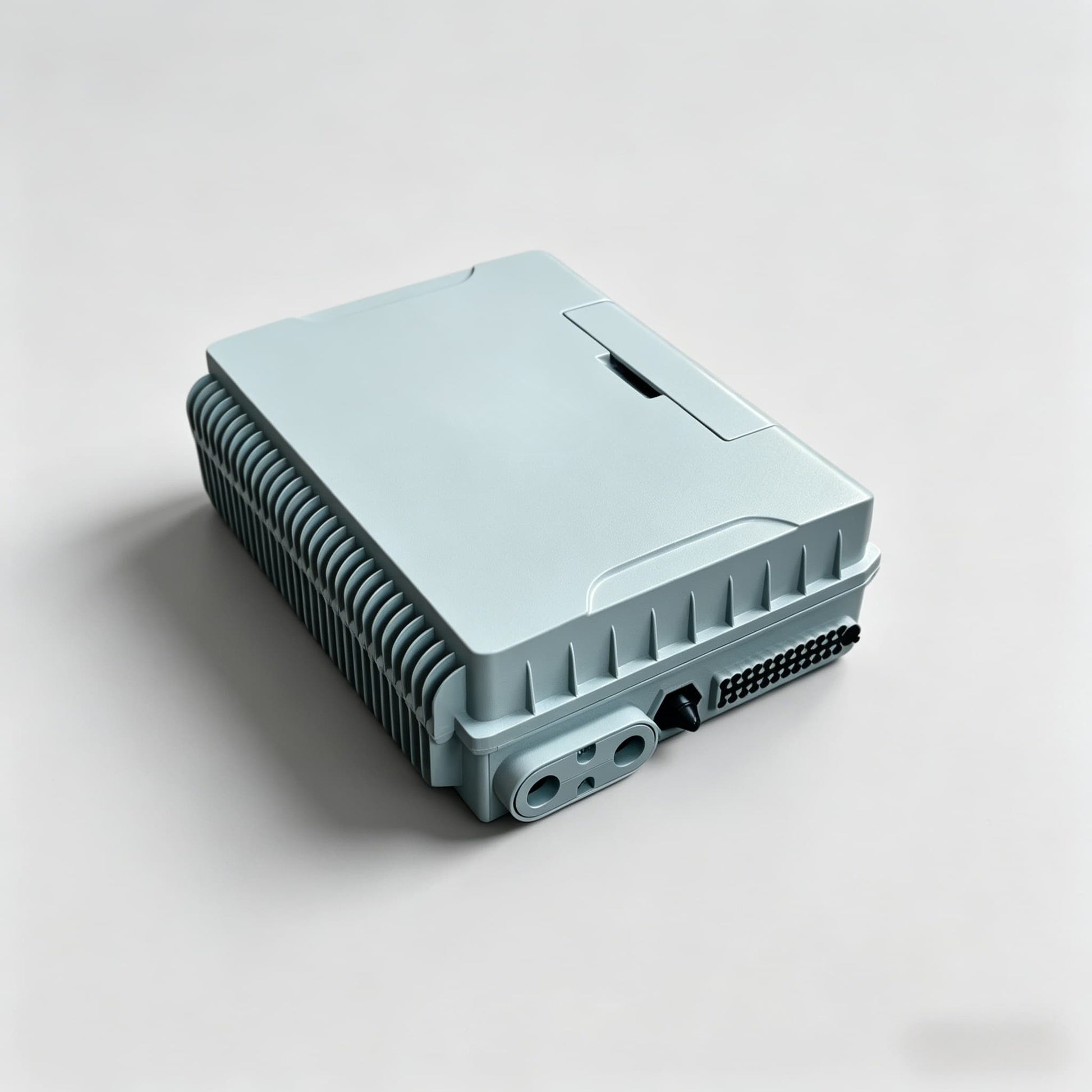

  • 24-core-fiber-distribution-box-a2-side

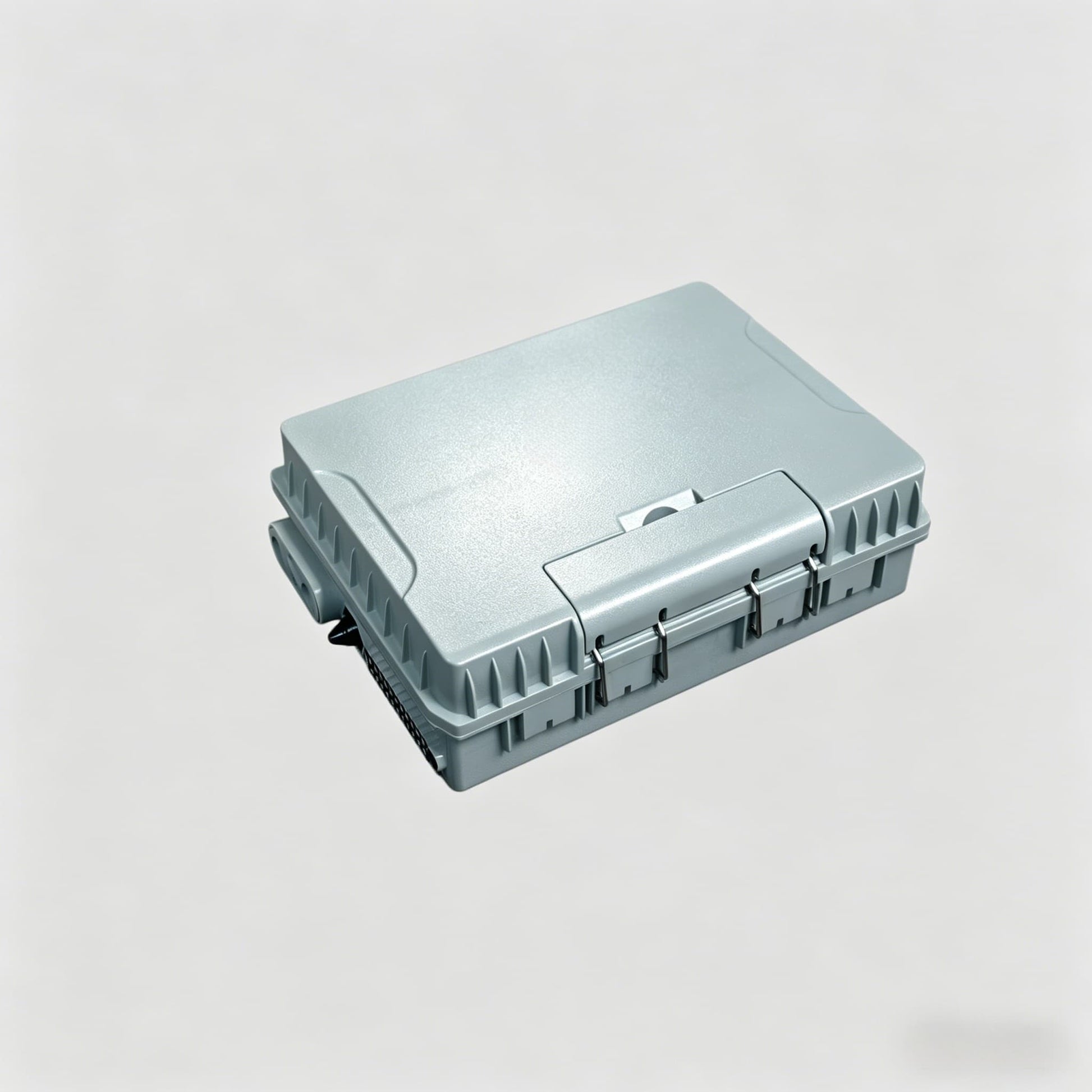

  • 24-core-fiber-distribution-box-a2-side-2

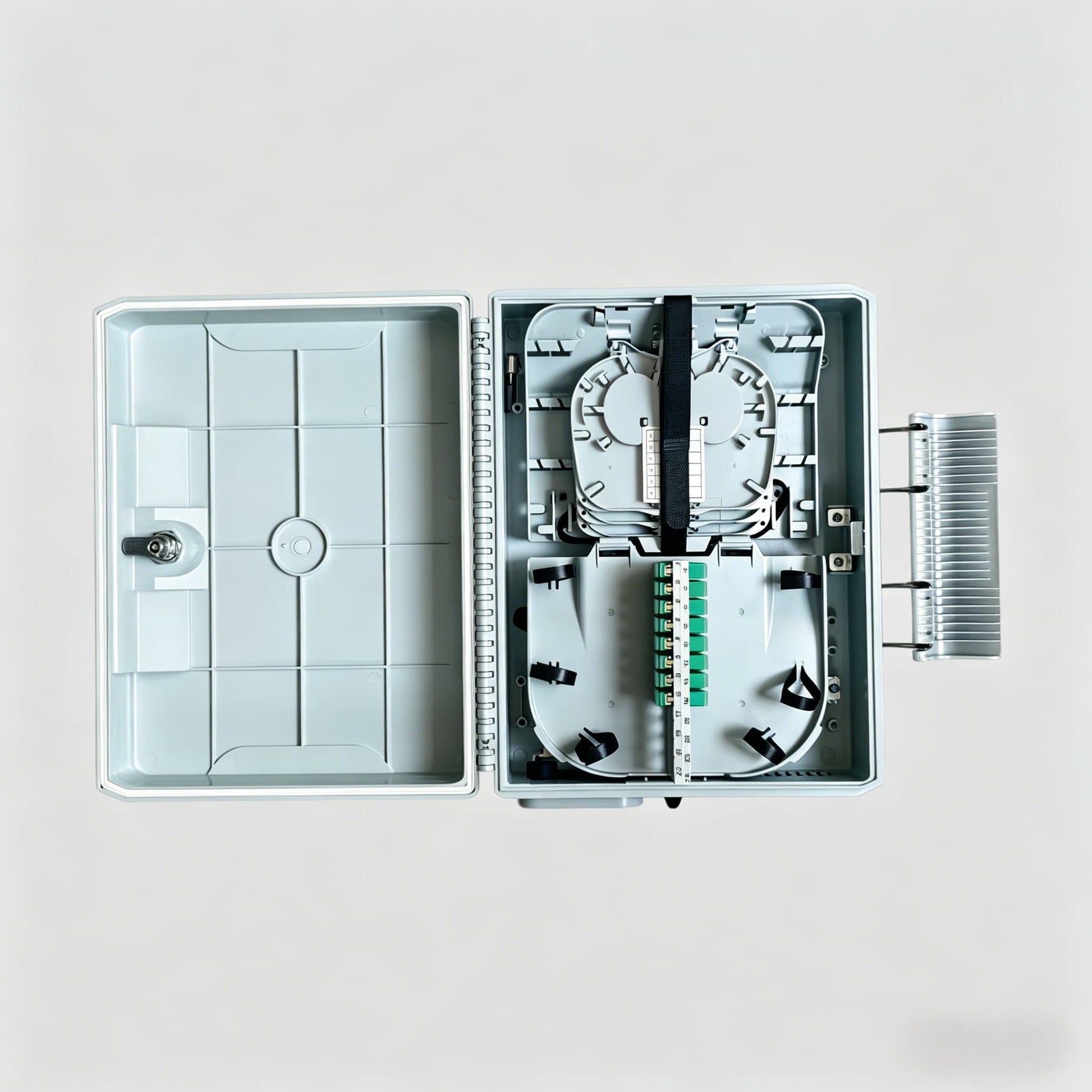

  • 24-core-fiber-distribution-box-a2-open-3

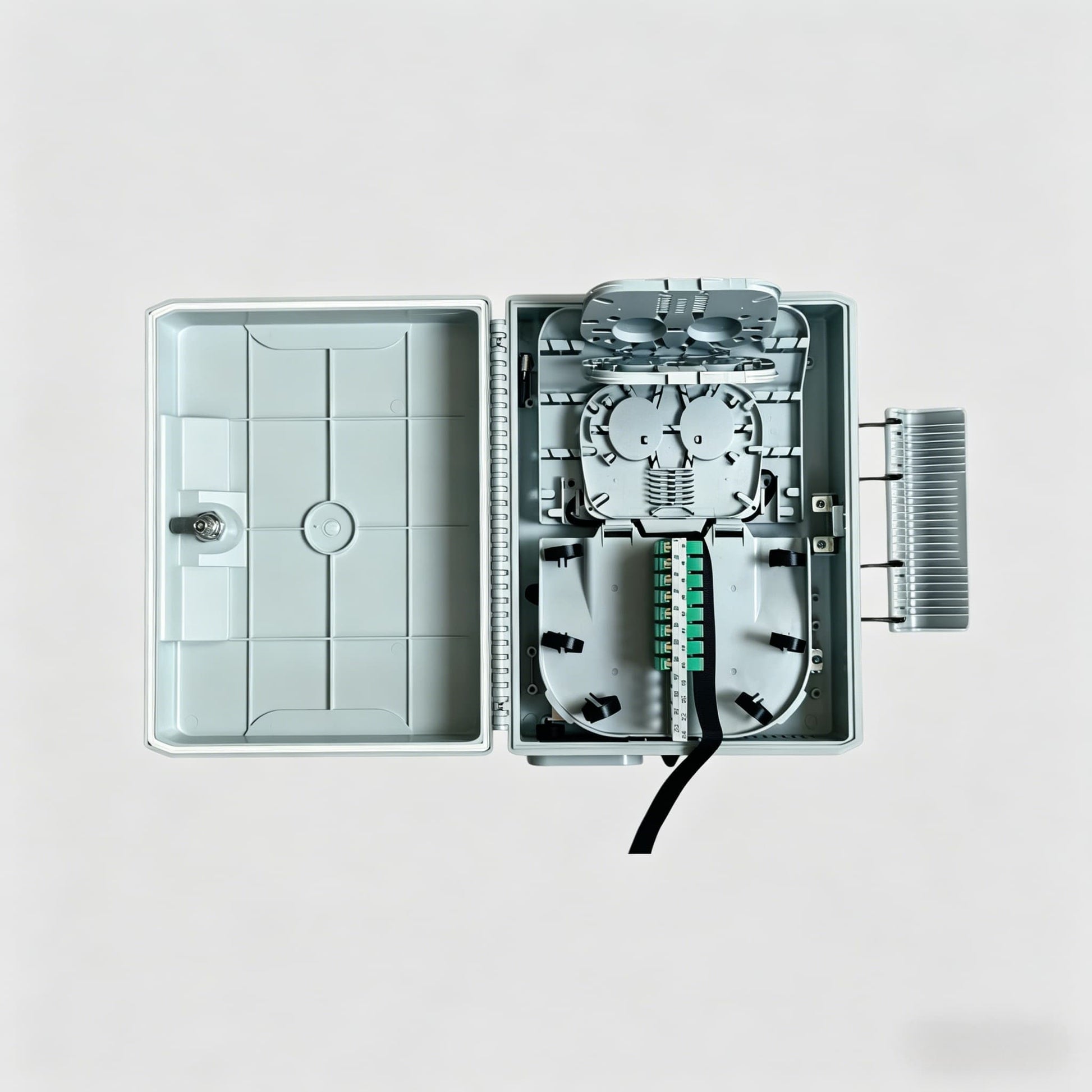

  • 24-core-fiber-distribution-box-a2-open-1

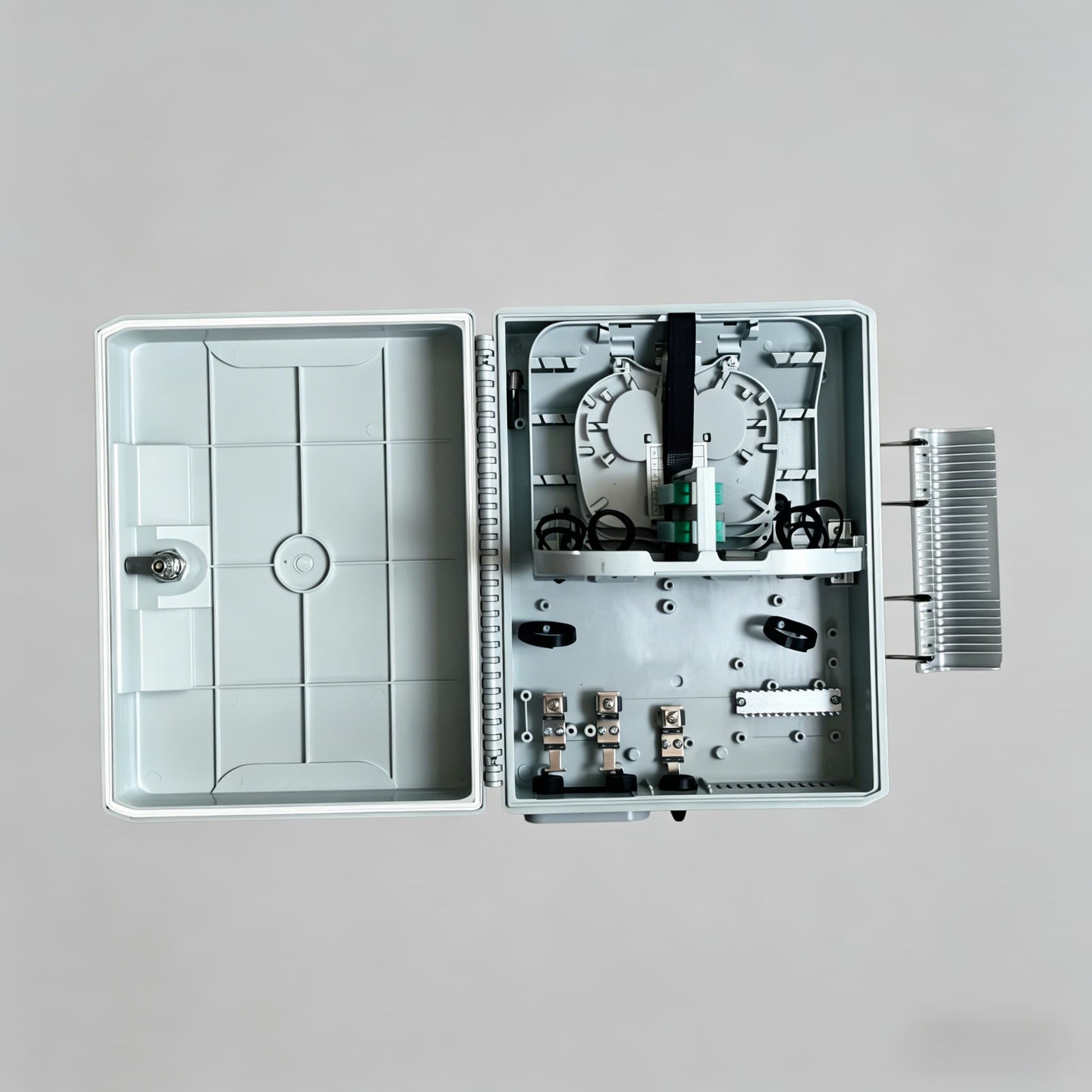

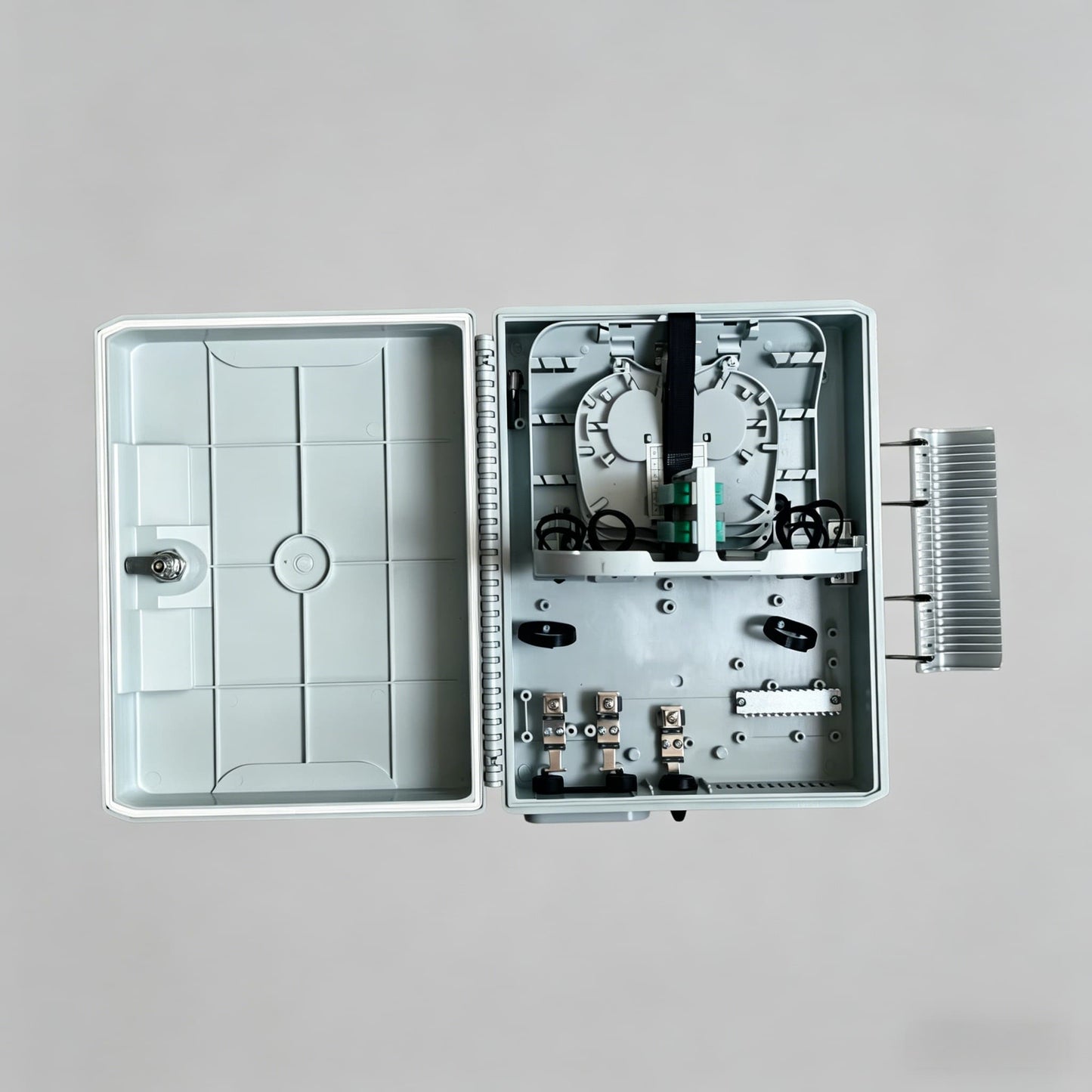

  • 24-core-fiber-distribution-box-a2-open-2

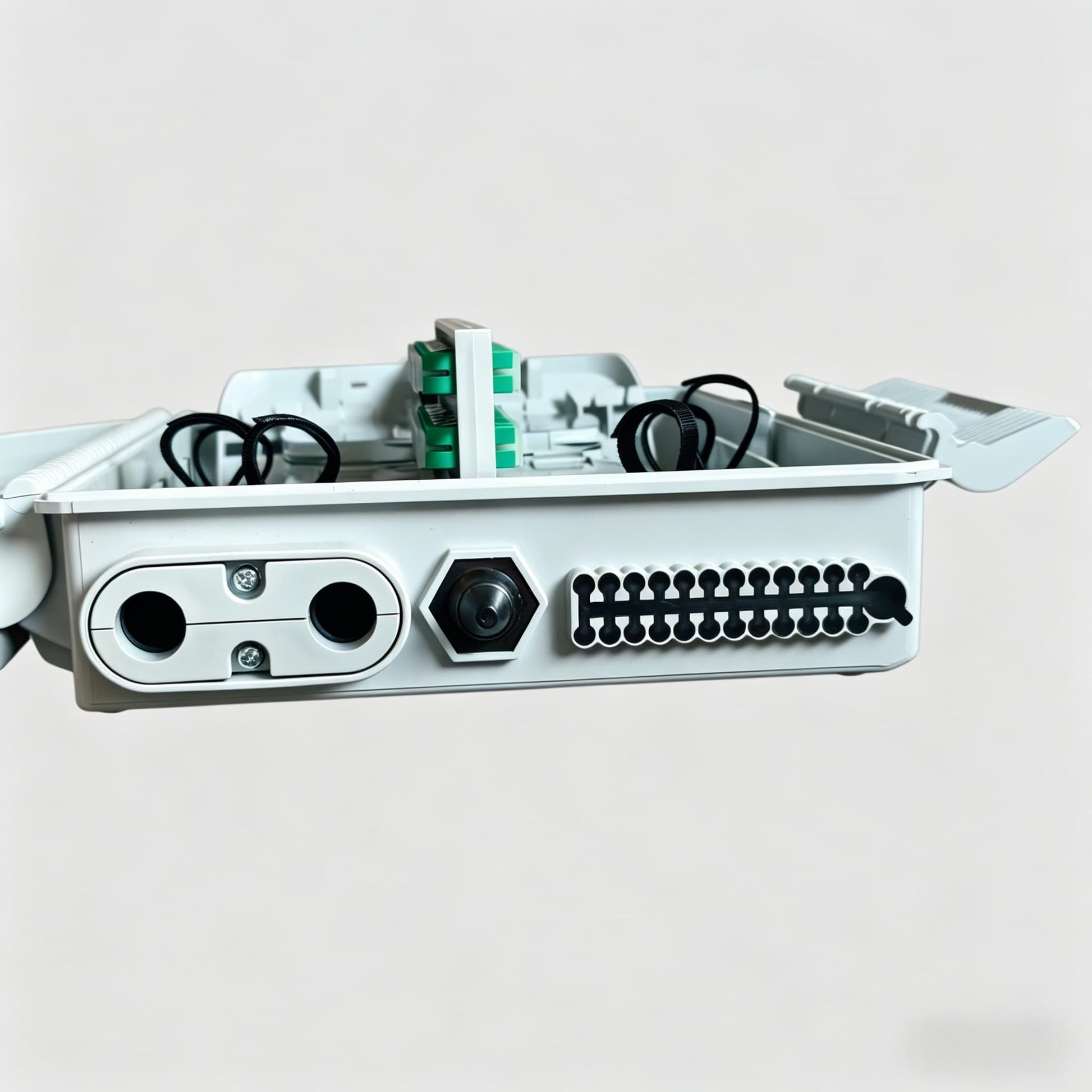

  • 24-core-fiber-distribution-box-a2-port

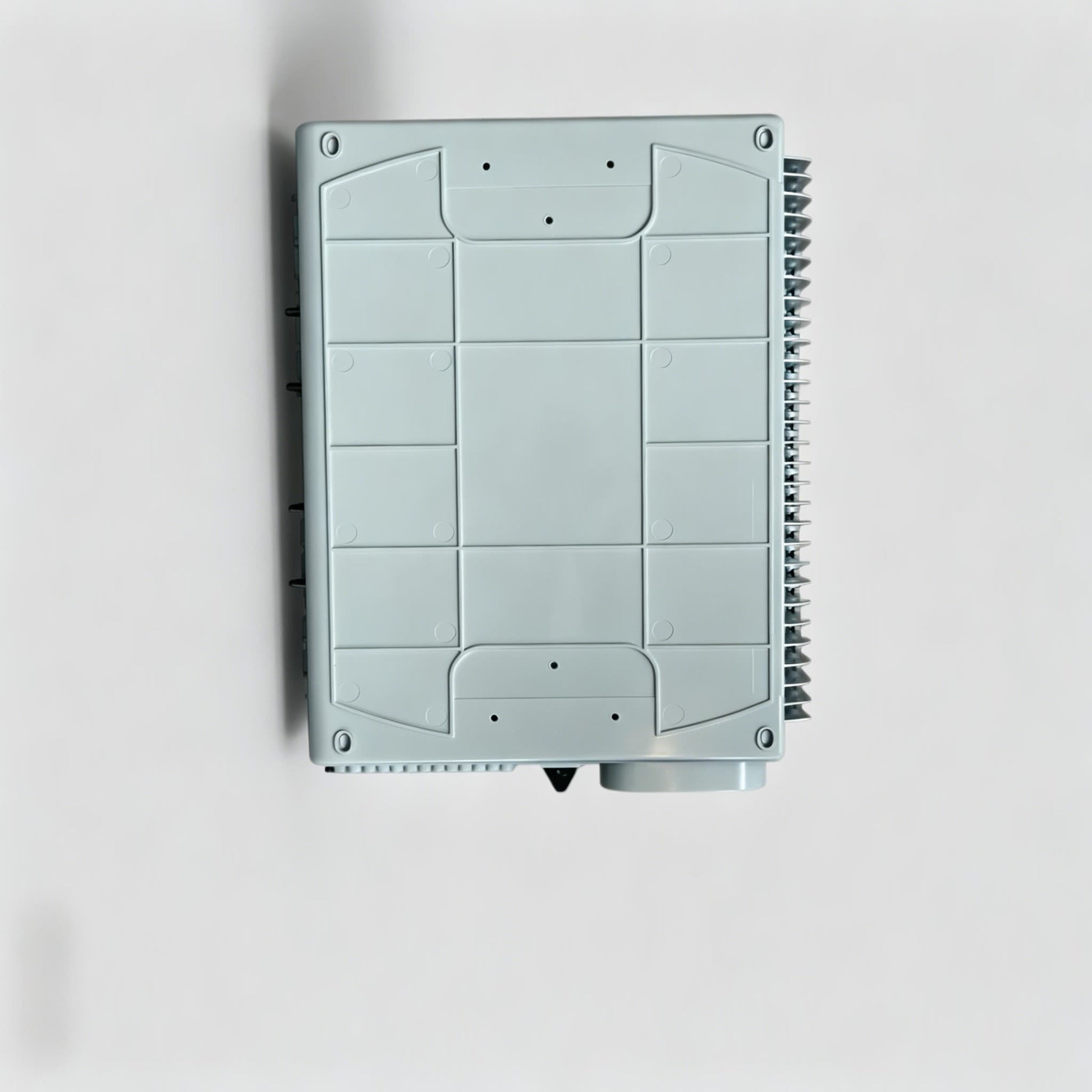

  • 24-core-fiber-distribution-box-a2-back
1 8
Type: Boîte optique

Boîtier de distribution de fibre optique 16 cœurs, IP65 pour réseau FTTH

Sku: BC-B-FDB-24-A02

This fiber optic distribution box is designed for outdoor wall-mounted installation, supporting up to 24 fiber cores. Diverse cable entrances and optimized routing way, fast deployment.

Key Parameter

-- Jusqu'à 16 cœurs de raccordement

-- Étanchéité de niveau IP65

-- Montage mural ou sur poteau disponible

-- Adaptateurs SC et LC compatibles

-- Prend en charge les répartiteurs PLC 1:8 ou 1:16

-- Conforme aux normes CE, RoHS, REACH

-- OEM, ODM disponibles

-- Fabrication en usine, qualité garantie

MoQ & Lead Time

MOQ: 500 pcs
Lead Time: 15–25 days
Sample: Available on request

Guarantee

  • 3 years quality guarantee
  • Timely response based on your time zone
  • Safe payment methods
Request Quote

Dimension & Detail

24-core-fiber-distribution-box-a2-dimension

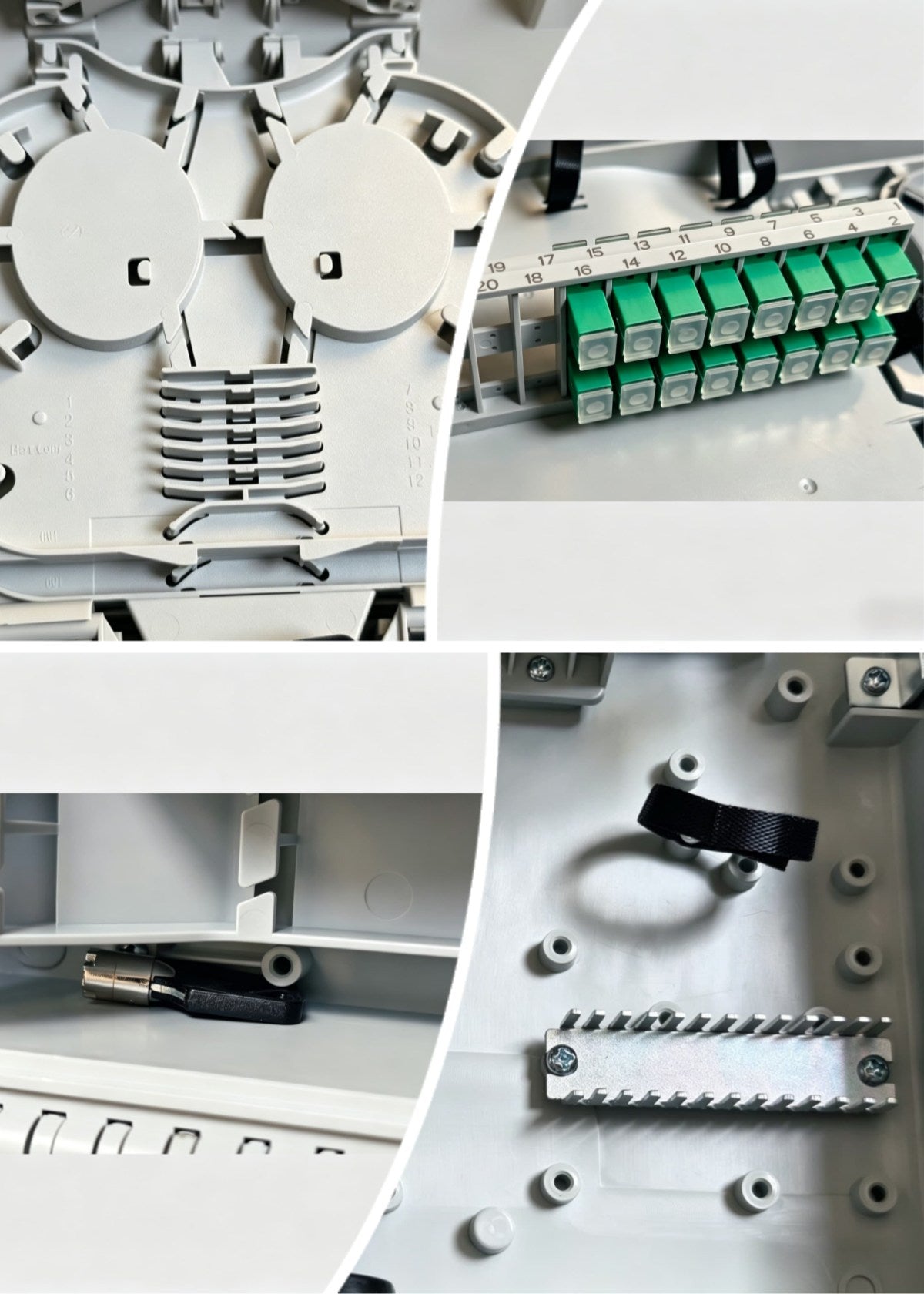

24-core-fiber-distribution-box-a2-detail
  • Description

Dimensions (H*L*P)

325mm*250mm*120mm

Couleur

Gris, noir

Matériau

PC+ABS

Capacité

16 Cœurs

Type d'adaptateur

SC/LC

Type de répartiteur

Répartiteur PLC 1*8/1*16

Nombre d'entrées et de sorties de câbles

2:16

Calibre d'entrée de câble

16mm

Température de fonctionnement

-40°C～+65°C

Étanchéité

IP65

Product Comparison

Show differences only
Product 24-core-fiber-distribution-box-a2-main
Boîtier de distribution de fibre optique 16 cœurs, IP65 pour réseau FTTH
 16-core-fiber-distribution-box-a2-main
Boîtier de distribution de fibre optique 16 cœurs, IP65 pour réseau FTTH
Dimension(L*W*D) 340*260*110mm 290x225x90mm
Capacity 24 Core 16 Core
Material PC+ABS PC+ABS
Adapter 24 16
Splitter 1pc PLC 1x16 1pc PLC 1x16
IP Level IP65 IP65
UV Resistance YES YES
Fire Retardant V0 V0

Doesn't meet your requirement? Please check all the optic distribution box here.

Optic Distribution Box Collection

F.A.Q.

Explore additional details in our FAQ section

Q: What's the diameter of the loop cable supported?
The diamter of the loop cable installed at left bottom is 8-16mm.

Q: What's the diameter of the drop cable supported?
The diameter of the drop cable installed at right bottom is up to 3mm.

Q: Is this 24 core fiber distribution box suitable for outdoor FTTH deployment?
Yes, it is designed for outdoor scenario deployment.

Q: Does it support wall mount and pole mount installation?
Yes, both is supported.

Q: What splitter configurations are compatible with this model?
The box has 3 independent splicing trays, each tray has 1 slot for splitter installation. Only the PLC splitter is supported, 1x8 or 1x16.

Q: What is the difference between this 24 core model and a 16 core distribution box?
Please check the comparison table in the previous section.

Q: What information should I send to get a quotation quickly?
Press the button "Request a Quote" at top right of the site, send to us the detailed spec of the project/tender, and the quantity, we will analyze and discuss with you within 2 working days.

1. Send your drawing, spec, or target configuration to Email: sales@bray-ct.com.
2. We review structure, capacity, and customization scope.
3. Confirm sample, quote, and production plan.
4. Move into batch production and shipment follow-up.

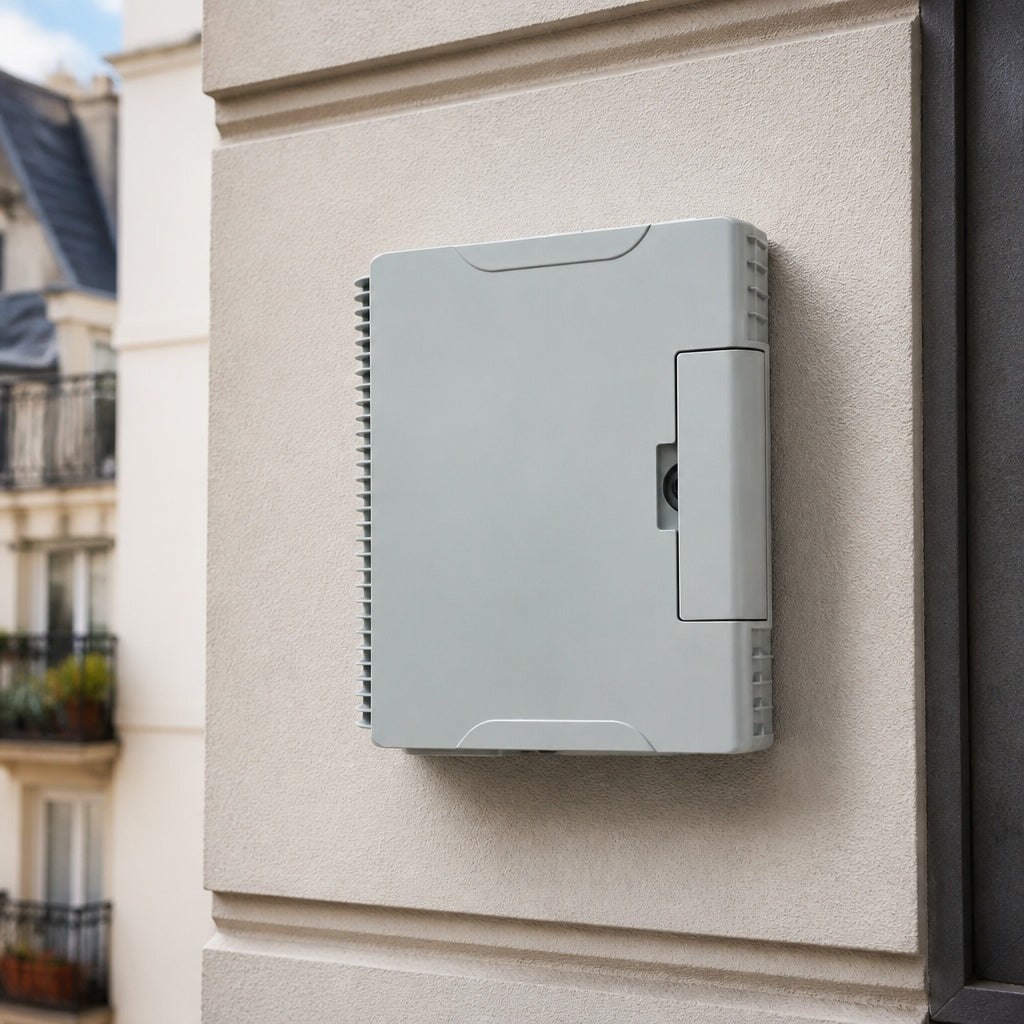

24-core-fiber-distribution-box-a2-wall-mounted
