What's the diameter of the loop cable supported?

The diameter of the loop cable installed at the left bottom port is 8-16mm, suitable for standard outdoor feeder cables in FTTH backbone deployments.

What's the diameter of the drop cable supported?

The diameter of the drop cable at the right bottom port is up to 3mm, compatible with FTTH drop cables running to individual apartments or offices.

Is this 24-core fiber distribution box suitable for outdoor FTTH deployment?

Yes. The enclosure is IP65-rated with UV-resistant PC+ABS material, designed specifically for outdoor wall or pole mounted FTTH distribution in residential and commercial buildings.

Does it support wall mount and pole mount installation?

Yes, both wall mounting and pole mounting are supported. A wall mounting kit is included; pole mounting hardware is available on request.

What splitter configurations are compatible with this model?

The box has 3 independent splicing trays, each with 1 slot for splitter installation. PLC splitters are supported, either 1x8 or 1x16, with up to 3 splitters per box.

What is the difference between this 24-core model and a 16-core distribution box?

The 24-core model measures 340x260x110mm and supports 24 SC/LC adapters. The 16-core model measures 290x225x90mm and supports 16 adapters. Both share IP65, UV-resistant PC+ABS, and 1x16 PLC splitter support.

What information should I send to get a quotation quickly?

Send your project or tender specification and required quantity via the Request a Quote button at the top right of the site. BRAY-CT analyzes and responds within 2 working days with sample, quote, and production plan.

OEM&ODM | BRAY-CT

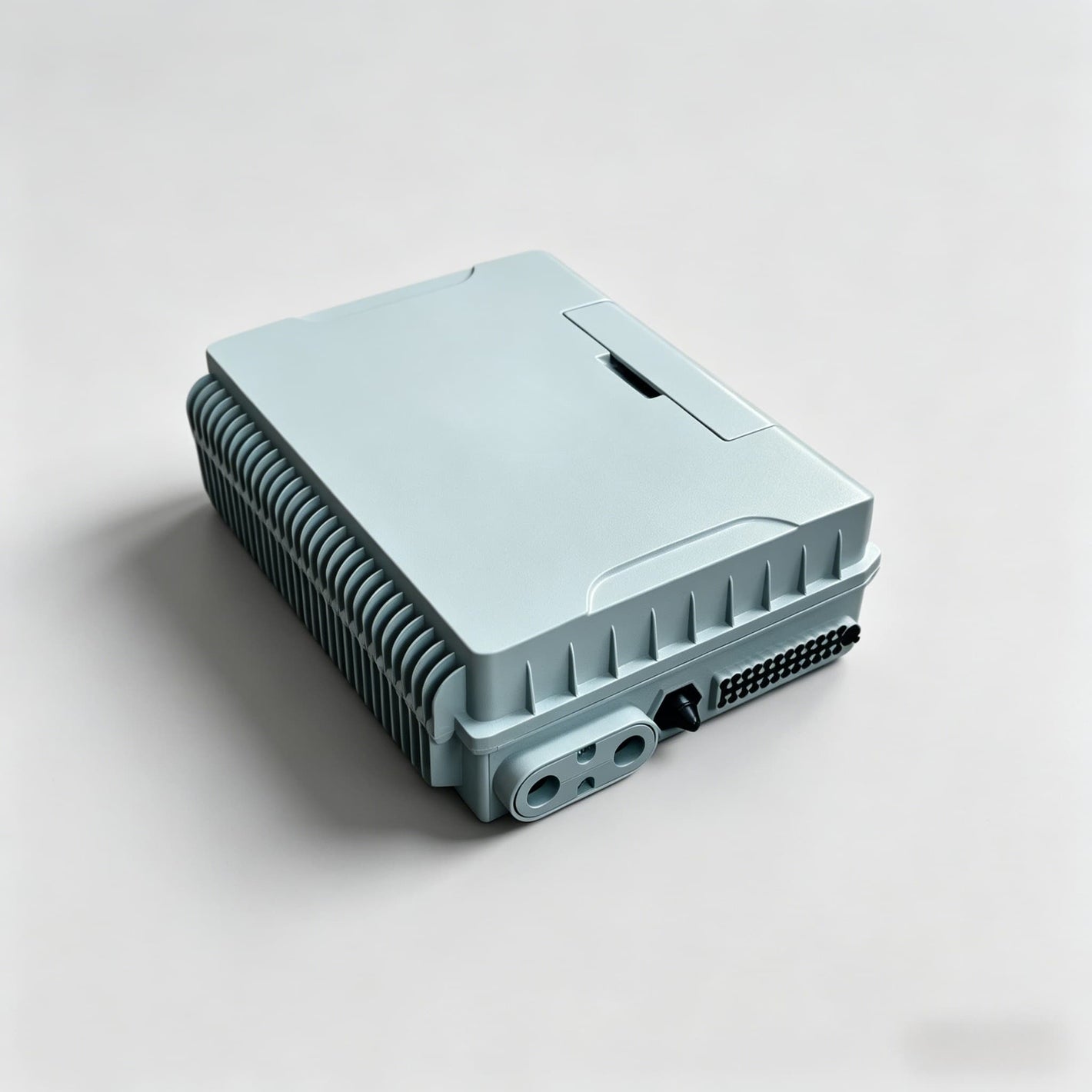

Name: 24 Core Fiber Optic Distribution Box, IP65 Outdoor
Brand: BRAY-CT
SKU: BC-B-FDB-24-A02
Price: 15.00 USD
Availability: InStock

OEM & ODM / Tender Support

FTTH OEM & ODM Support for Tender-Driven Projects

We help integrators, distributors, and project partners prepare FTTH boxes and related fiber products based on operator specifications, drawings, and bid requirements.
