Ask about Fiber Splicing Closure 12 Core-A1
Technical Specifications

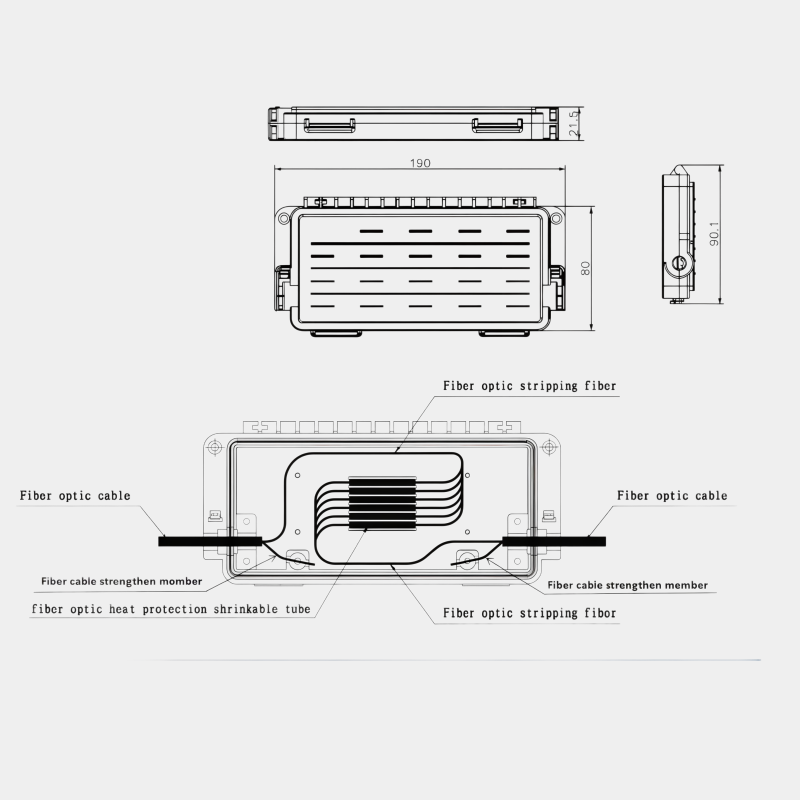

Dimensions (H*W*D) | 190mm*90mm*21.5mm |
Color | Black |
Material | ABS |
Adapter Type | N/A |
Adapter Capacity | N/A |
Splicing Capacity | 12 |
Number of Cable In & Out | 1:1 |
Net weight | 0.4 Kg |
Working Temperature | -40°C～+65°C |
Water-proof | IP65 |
Applications
Brownfield MDU (Europe)
Mount on building facade or riser. Each NAP box serves 16 apartments. Pre-connectorized drop cables to each unit — no splicing needed on-site.
Outdoor OSP — Pole Mount
UV-resistant enclosure rated for −40°C to +75°C. Stainless steel pole clamp included. Serves residential streets with 8–16 homes per NAP box.
Small ISP Last-Mile
Start with 50-unit procurement. Each NAP box is a revenue point — 16 subscribers per box. Pair with FDB feeder and pre-terminated drop cables for fastest rollout.
Housing Developments
New residential estates in SE Asia and Middle East. Wall-mount at property boundary or building entry. Splitter pre-loaded at factory to reduce field labor.
