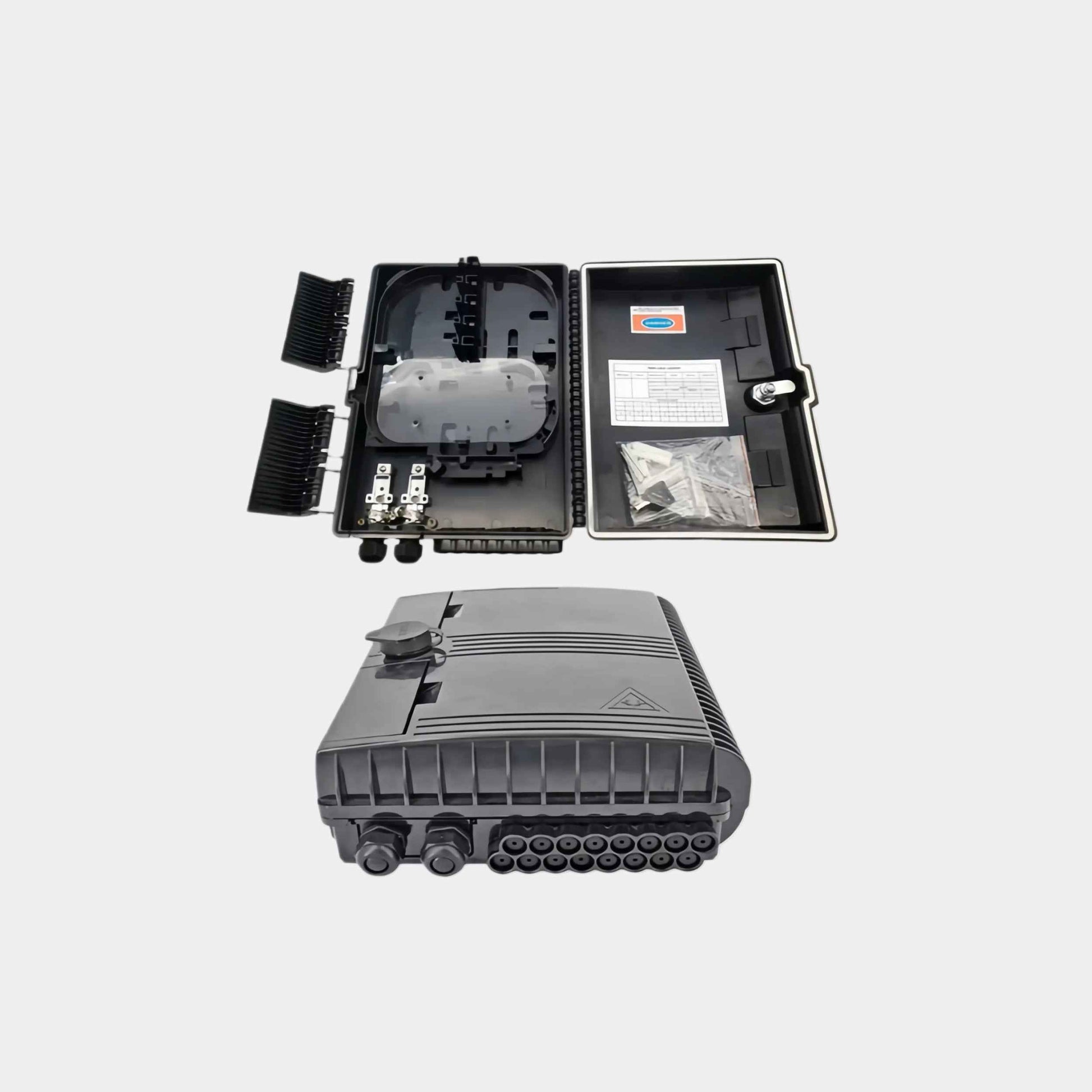

• Fiber Distribution Box 16 Core-A1

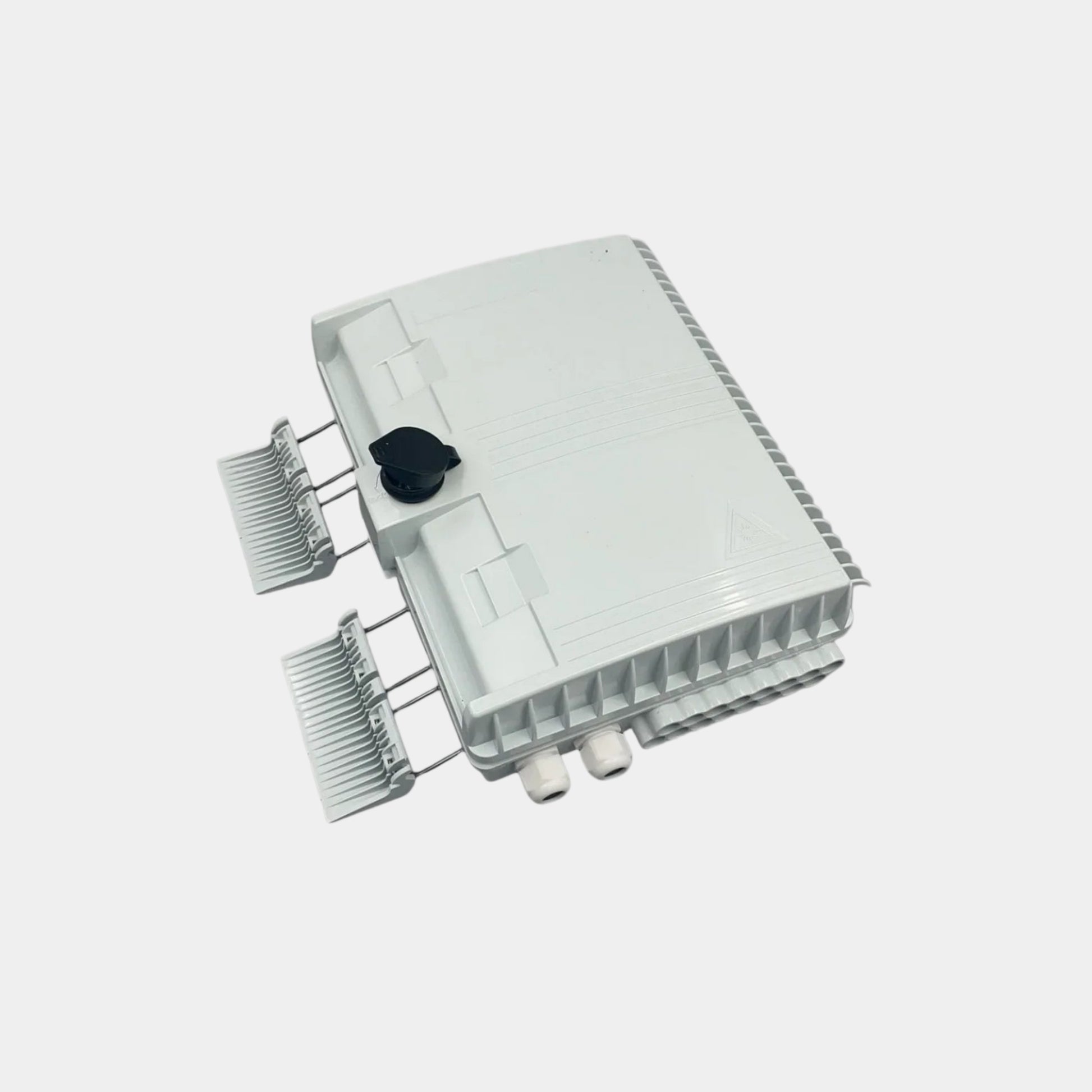

  • FDB 16 Core-A1-Grey-front look-BRAY-CT
  • Fiber Distribution Box 16 Core-A1

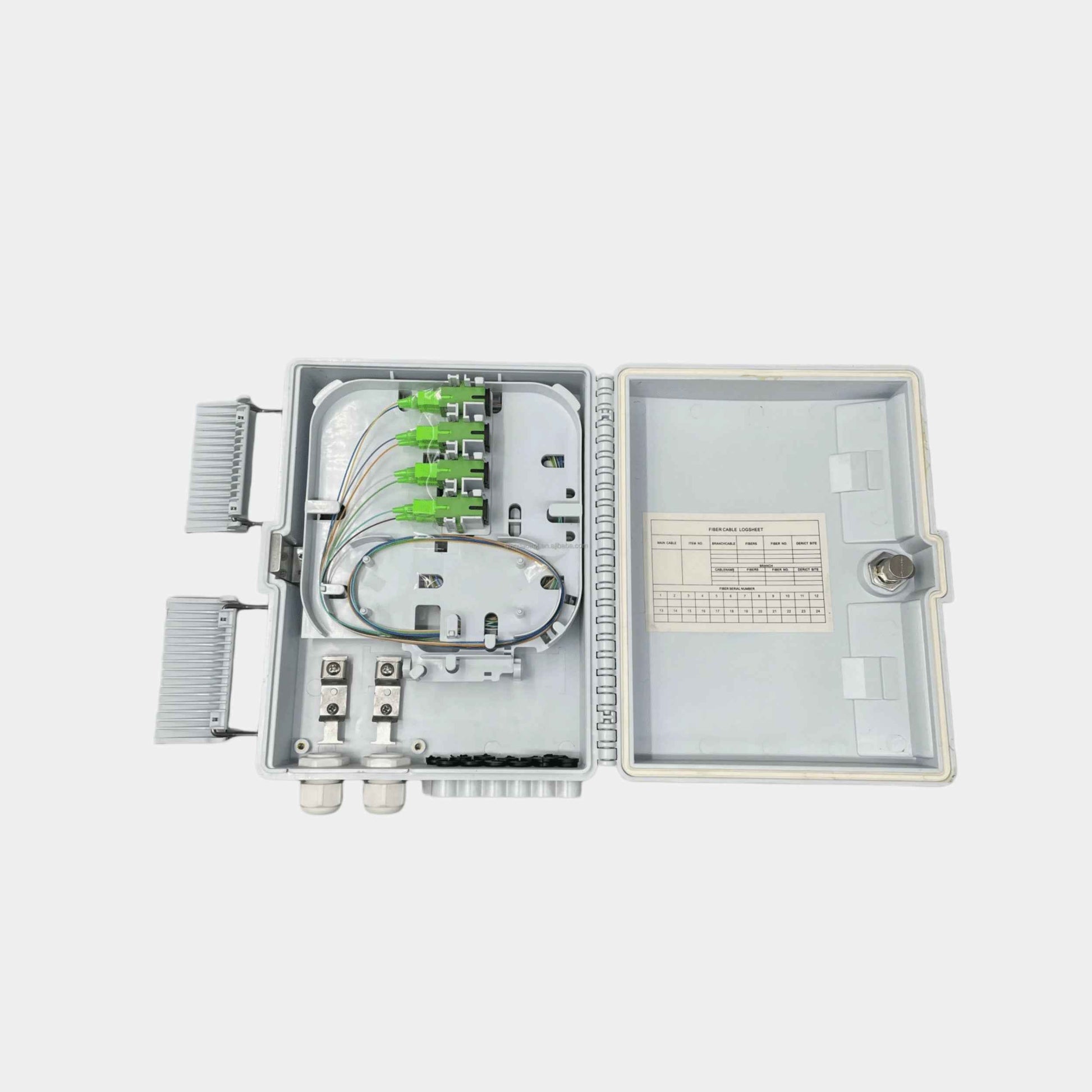

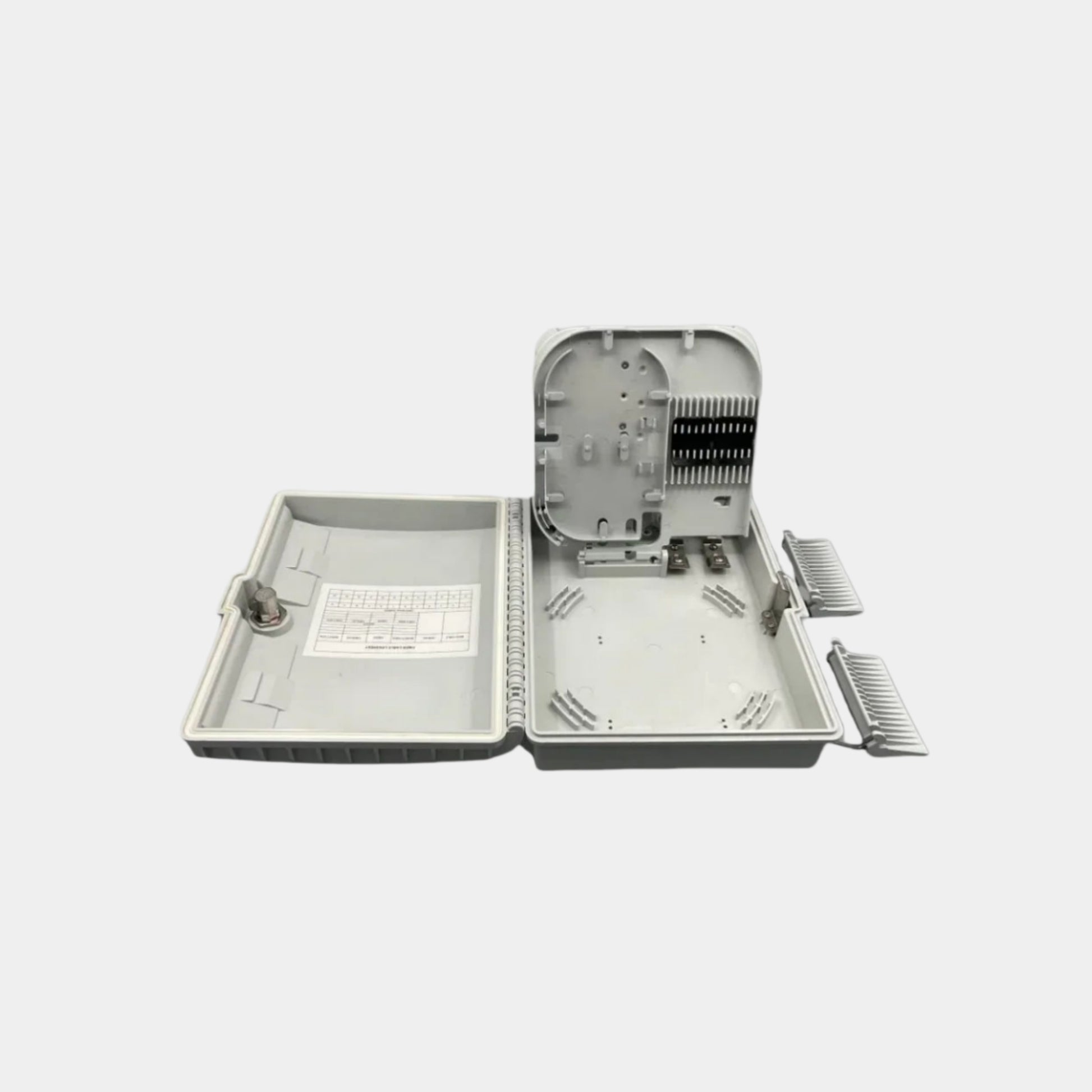

  • FDB 16 Core-A1-Grey-front open-2-BRAY-CT

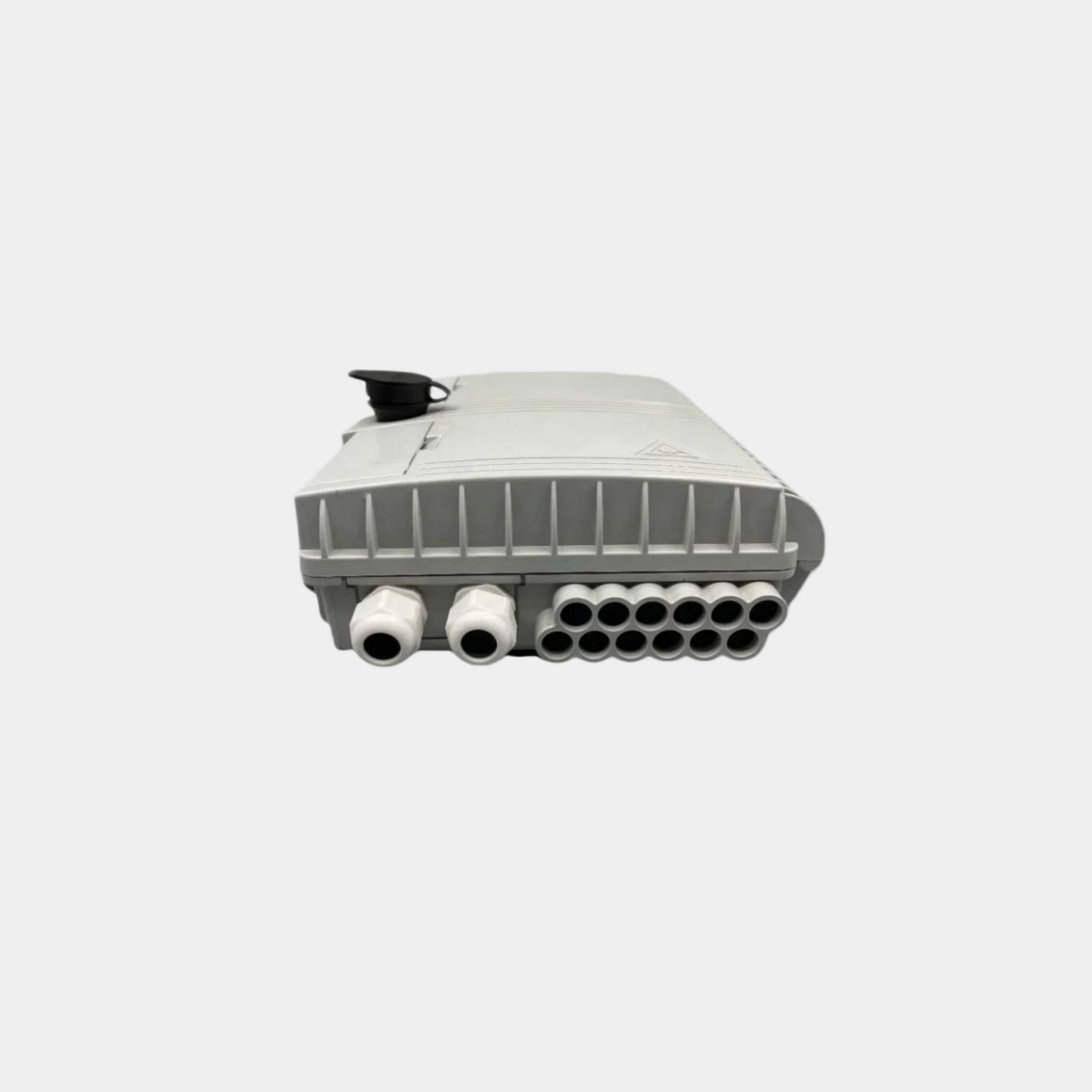

  • FDB 16 Core-A1-Grey-bottom port-BRAY-CT

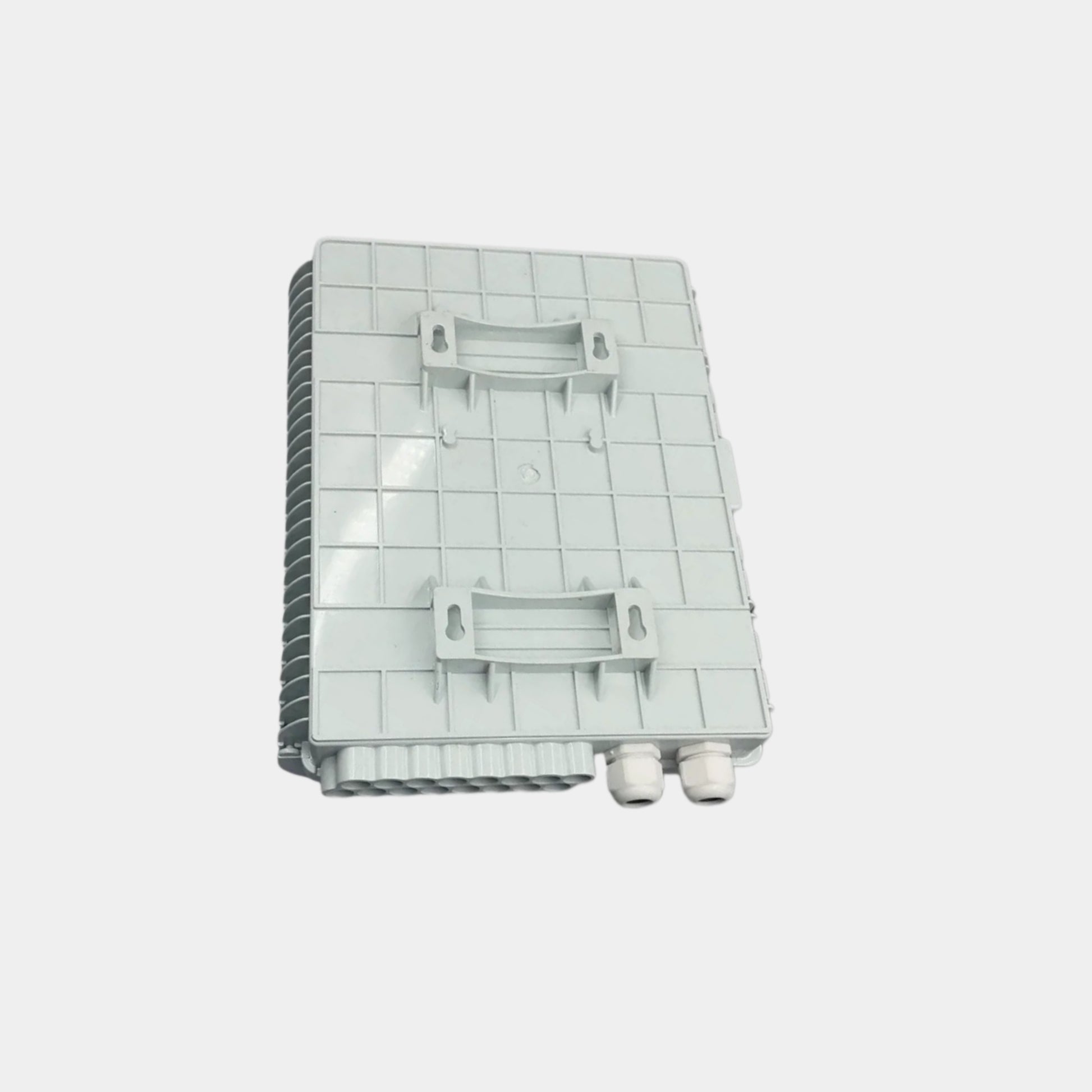

  • FDB 16 Core-A1-Grey-back look-BRAY-CT
  • FDB-16-Core-Wall-Installation-showcase
1 9
Type: Fiber Distribution Box

16-Core Fiber Optic Distribution Box IP65 FTTH

Sku: BC-B-FDB-16-A01

This FTTH fiber optic distribution box is designed for outdoor wall-mounted installation, supporting up to 16 fiber cores. It is widely used in telecom networks, FTTH deployment, and broadband access systems.

Key Parameter

-- Up to 16 core pactching

-- Water-proof level to IP65

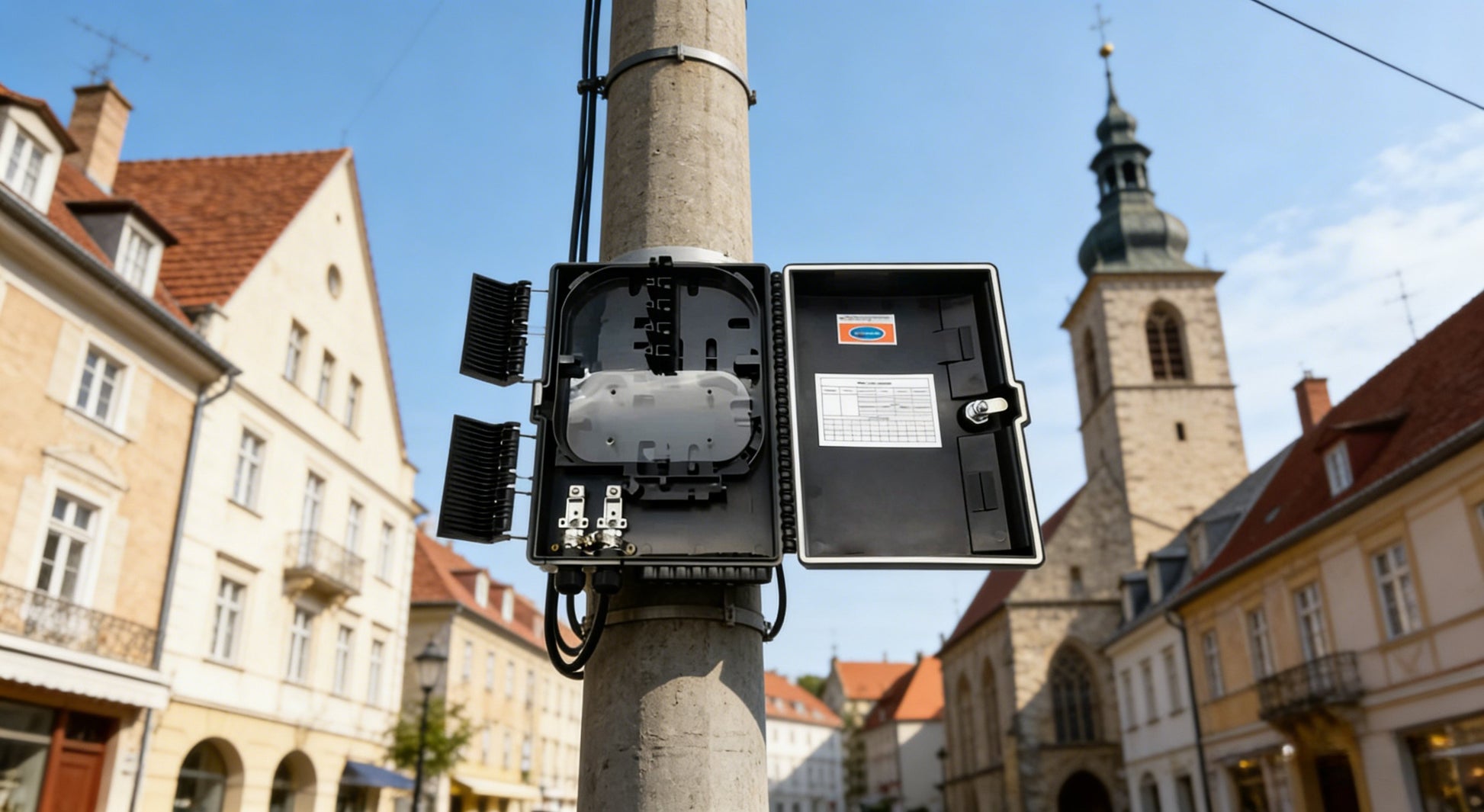

-- Wall-mounting or Pole-mounting available

-- SC and LC adapters compatible

-- 1:8 or 1:16 PLC splitter supported

-- CE, RoHS, REACH complied

-- OEM, ODM Available

-- Factory-made, quality guaranteed

MoQ & Lead Time

MOQ: 500 pcs
Lead Time: 15–25 days
Sample: Available on request

Guarantee

  • 3 years quality guarantee
  • Timely response based on your time zone
  • Safe payment methods
Request Quote

Quick Spec

Capacity

16 Core

Dimension

325*250*120mm

Material

PC+ABS

IP Level

IP65

Fire Retardant

UL94 V0

UV Resistance

YES

Certification

CE, RoHS, REACH

Installation Method

Wall & Pole mounted

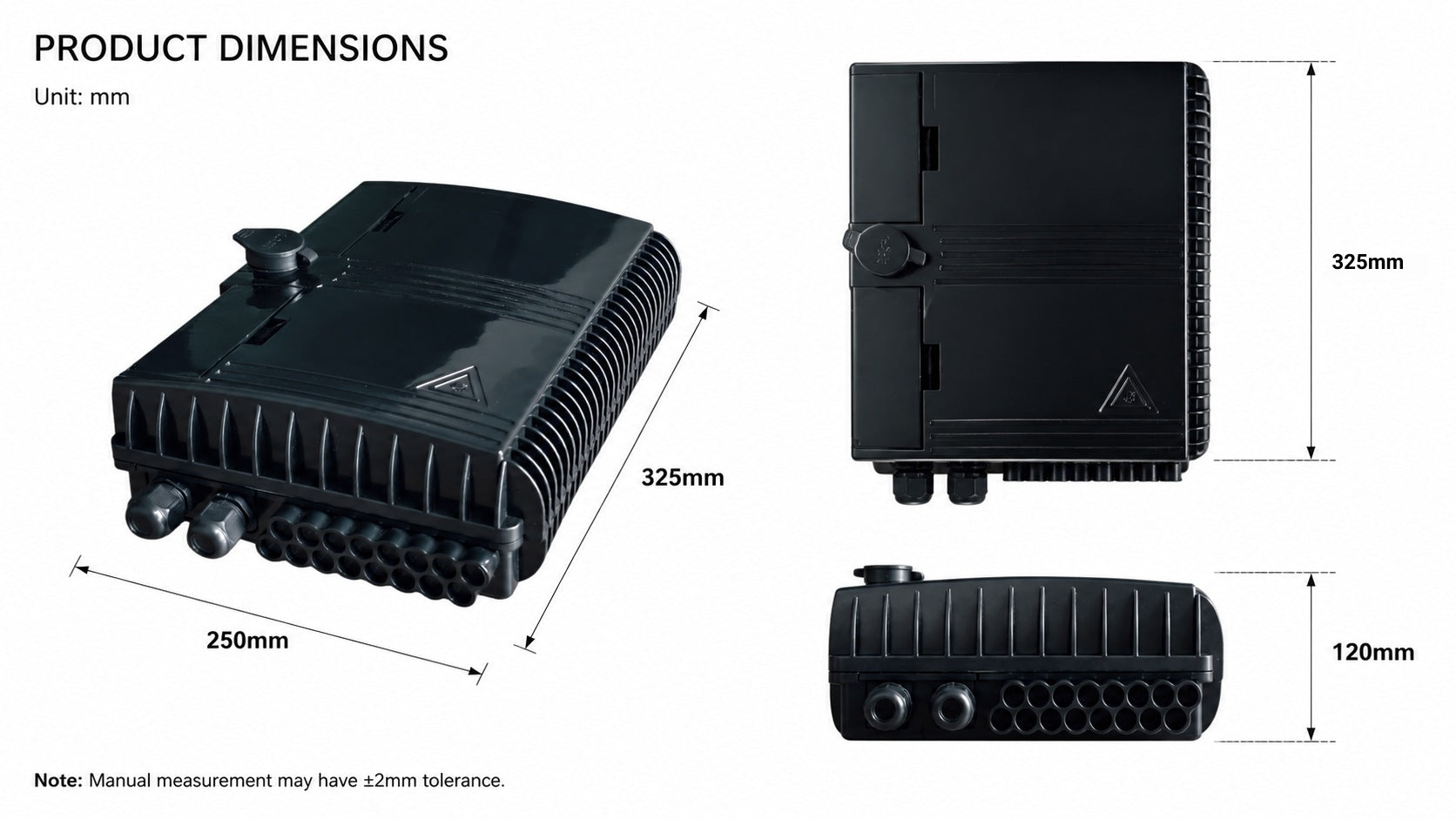

Dimension & Detail

  • Description

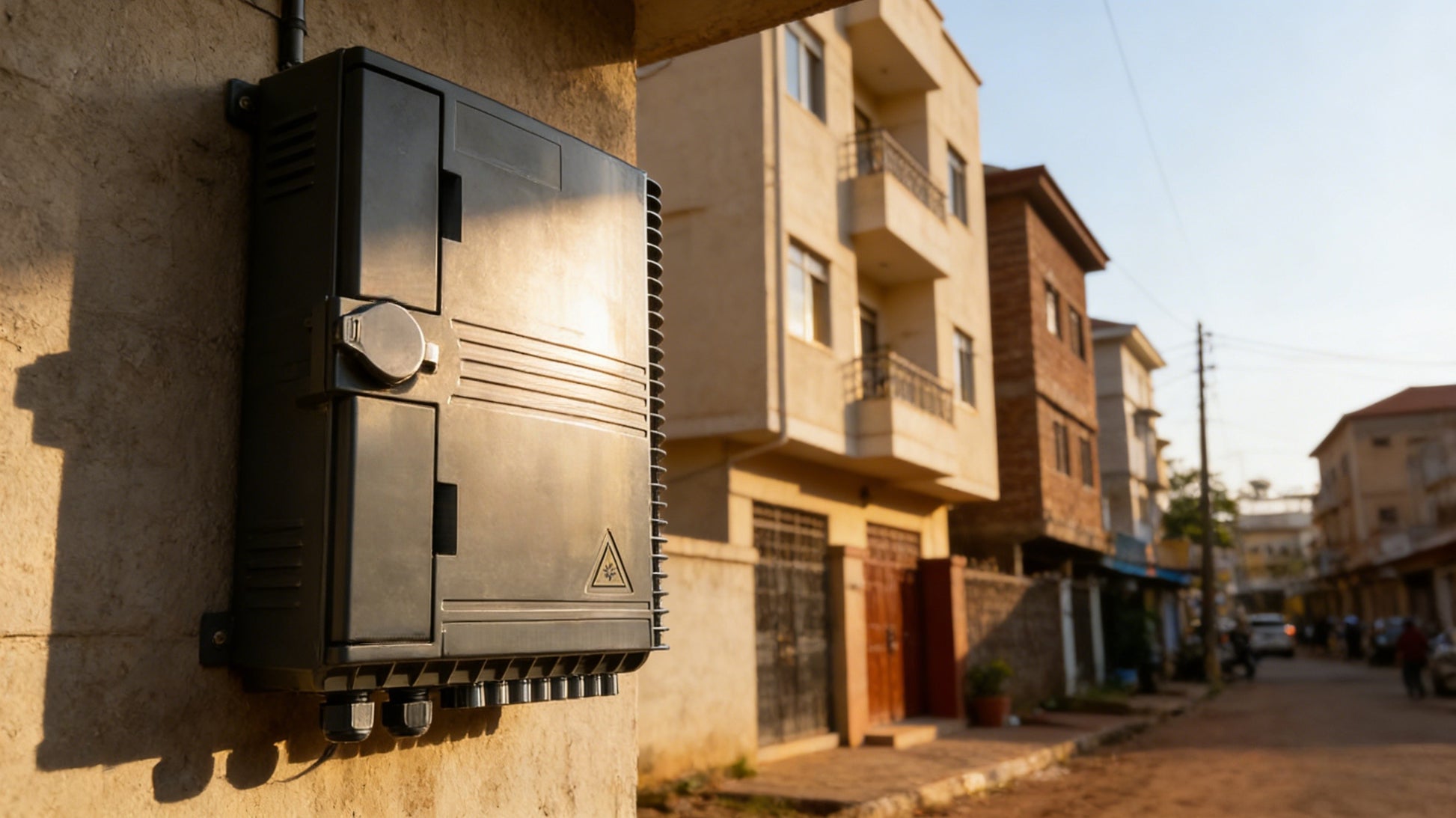

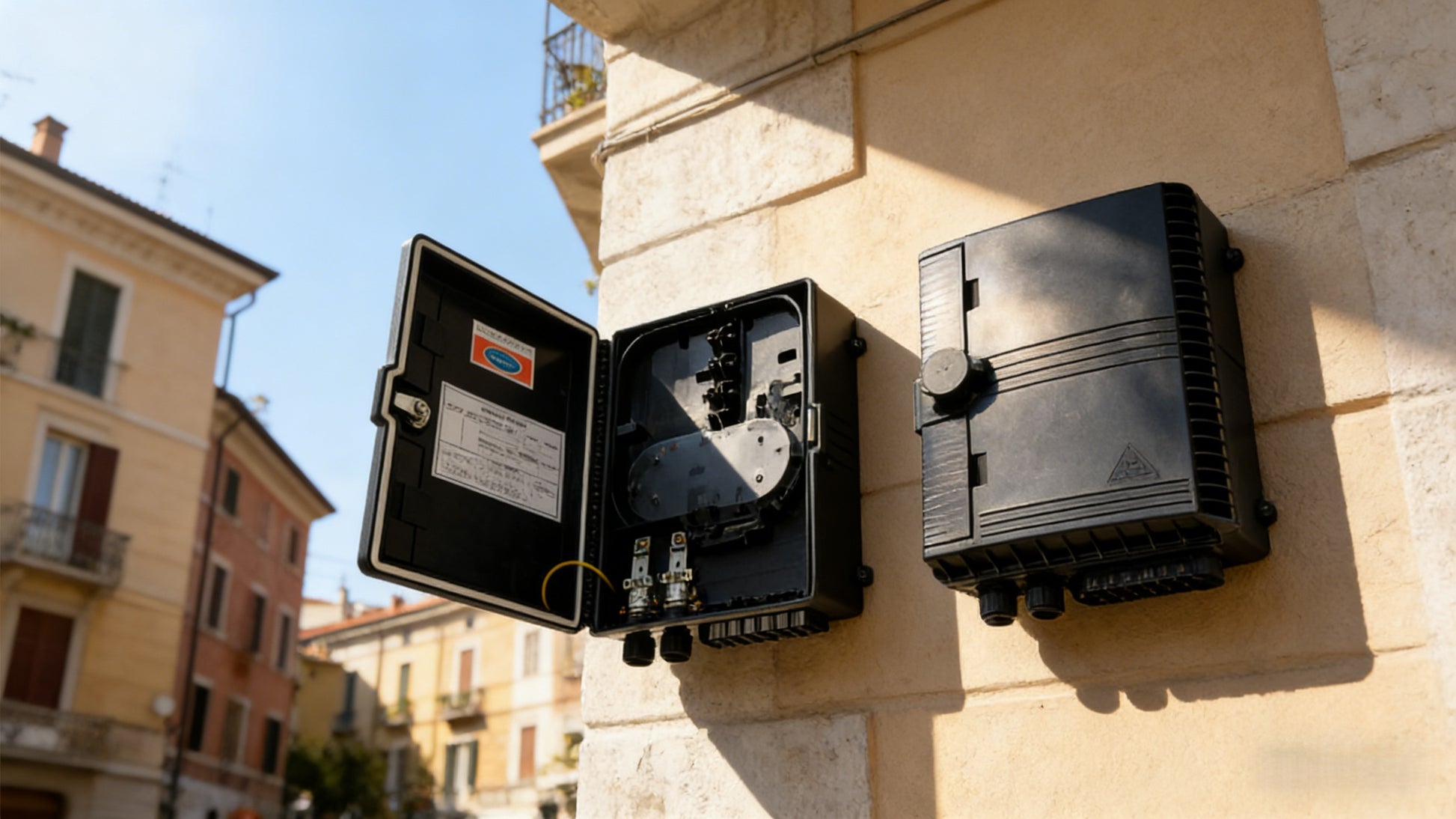

When the fiber run ends at an outdoor wall, you need a box that doesn't flinch. This 16-core outdoor FTTH distribution box is built for exactly that scenario — wall-mounted directly on building facades, it receives the feeder cable and distributes to individual apartments or offices.

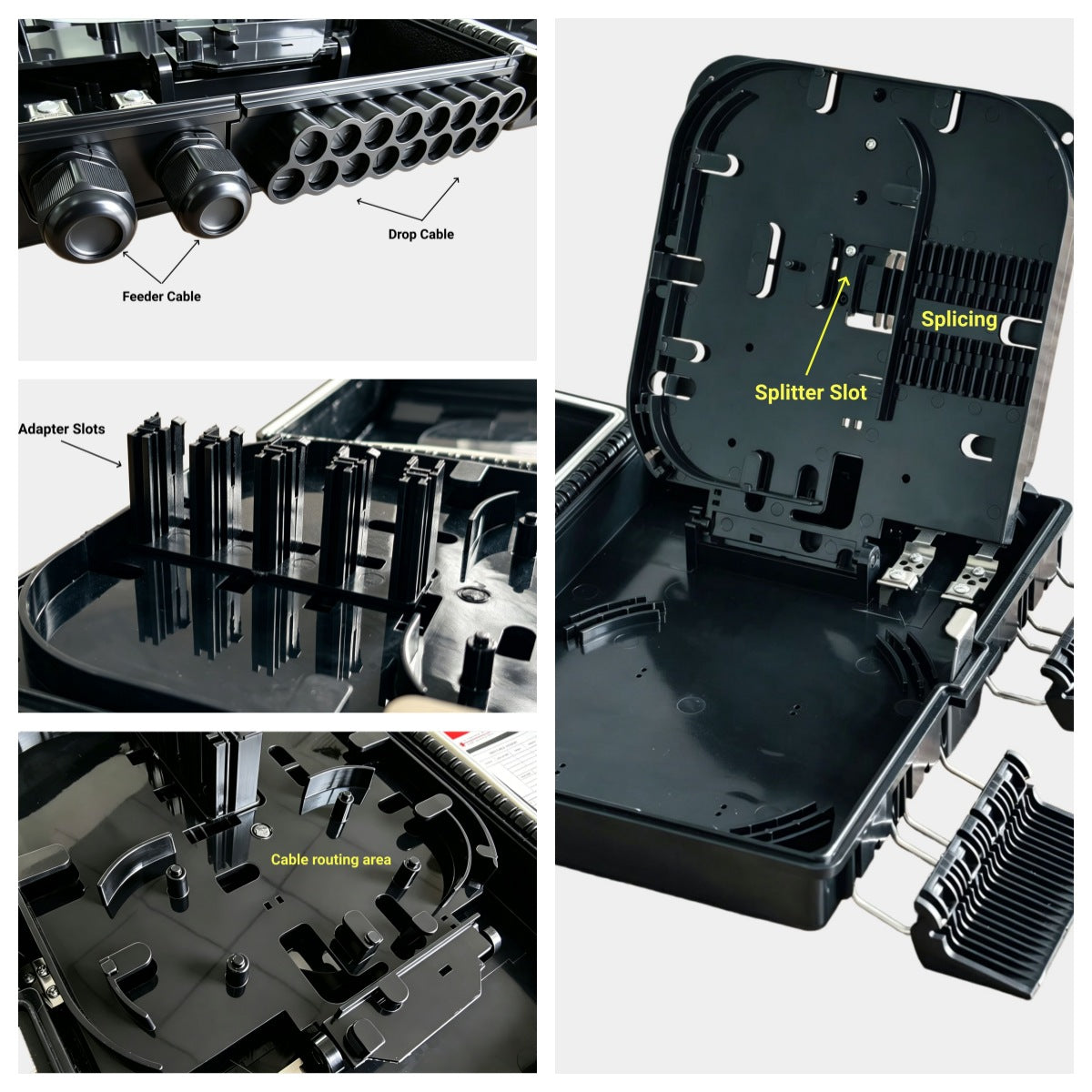

The 325*250*120mm body uses UV-resistant PC+ABS composite shell, and the internal splice tray or adapter panel provides full access for installation and maintenance. Dimensions: 325*250*120mm. Material: PC+ABS. Protection: IP65 weatherproof. Capacity: 16 Core. Ports: 16. Connector: SC/APC.

Installation is straightforward: mark the mounting positions, drill and secure with appropriate hardware, run the feeder cable through the cable gland, and connect to the adapter or splice panel. The cover hinges open for full access to the internal components. That's the entire procedure — no special tools or curing time required.

Typical applications:

- FTTH fiber-to-the-home network deployments

- outdoor fiber termination and distribution

- residential and commercial building fiber deployments

- fiber optic network infrastructure projects

Technical summary:
Capacity: 16 Core
Dimensions: 325*250*120mm
Material: PC+ABS
Protection: IP65
Connector type: SC/APC
Certifications: CE, ROHS, REACH
Fire rating: UL94 V0
Splitter support: 1pc PLC 1x16

Product Comparison

Show differences only
Product Fiber Distribution Box 16 Core-A1
16-Core Fiber Optic Distribution Box IP65 FTTH
 16-core-fiber-distribution-box-a2-main
16 Core Fiber Optic Distribution Box, IP65 Outdoor FTTH
Dimension(L*W*D) 325*250*120mm 290x225x90mm
Capacity 16 Core 16 Core
Material PC+ABS PC+ABS
Adapter 16 16
Splitter 1pc PLC 1x16 1pc PLC 1x16
IP Level IP65 IP65
UV Resistance YES YES
Fire Retardant V0 V0

F.A.Q.

Explore additional details in our FAQ section

1. Send your drawing, spec, or target configuration to Email: sales@bray-ct.com.
2. We review structure, capacity, and customization scope.
3. Confirm sample, quote, and production plan.
4. Move into batch production and shipment follow-up.

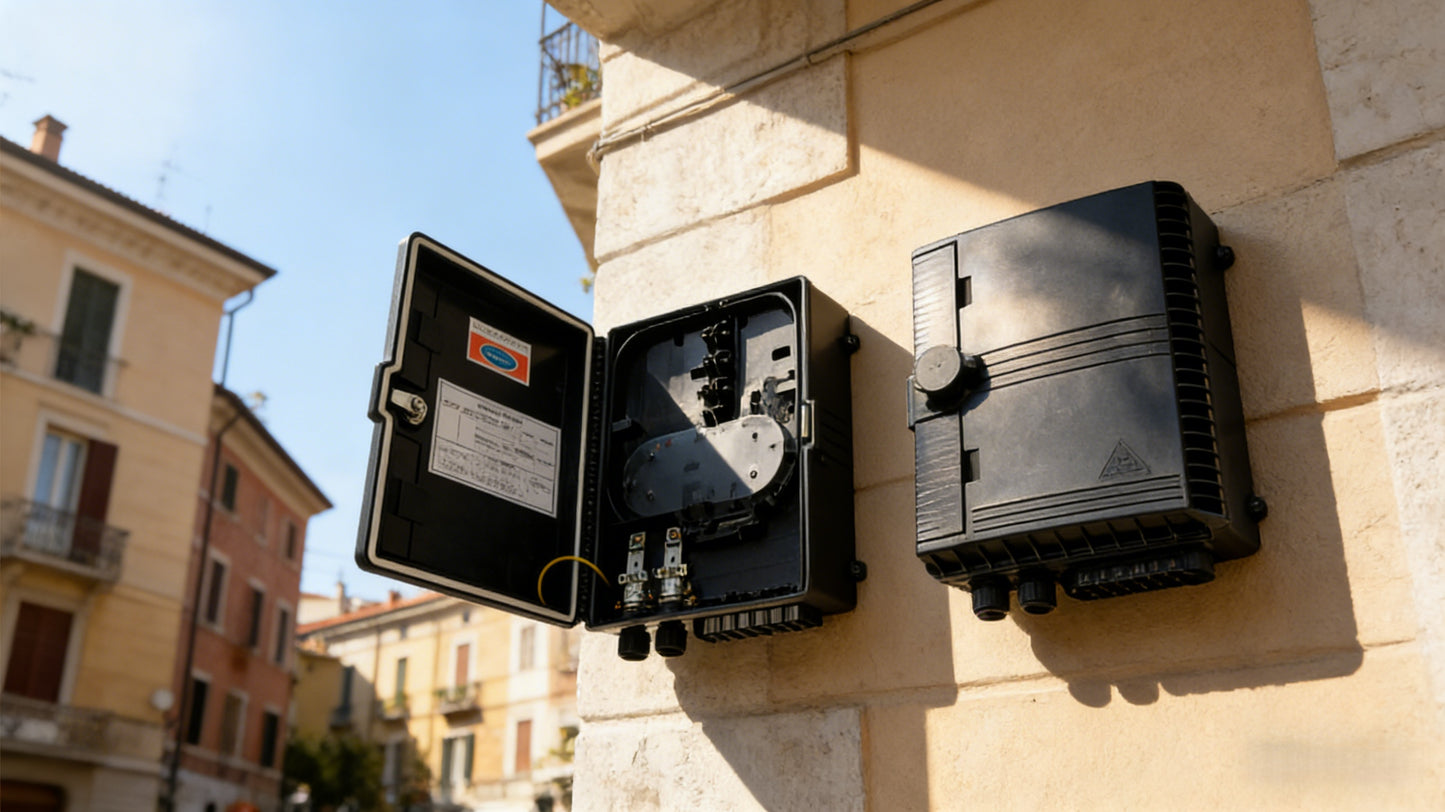

FDB-16-Core-Wall-Installation-showcase

Do you want to customize product?

Tell us your thinking, we can make the design free of charge and customize it for your project.
