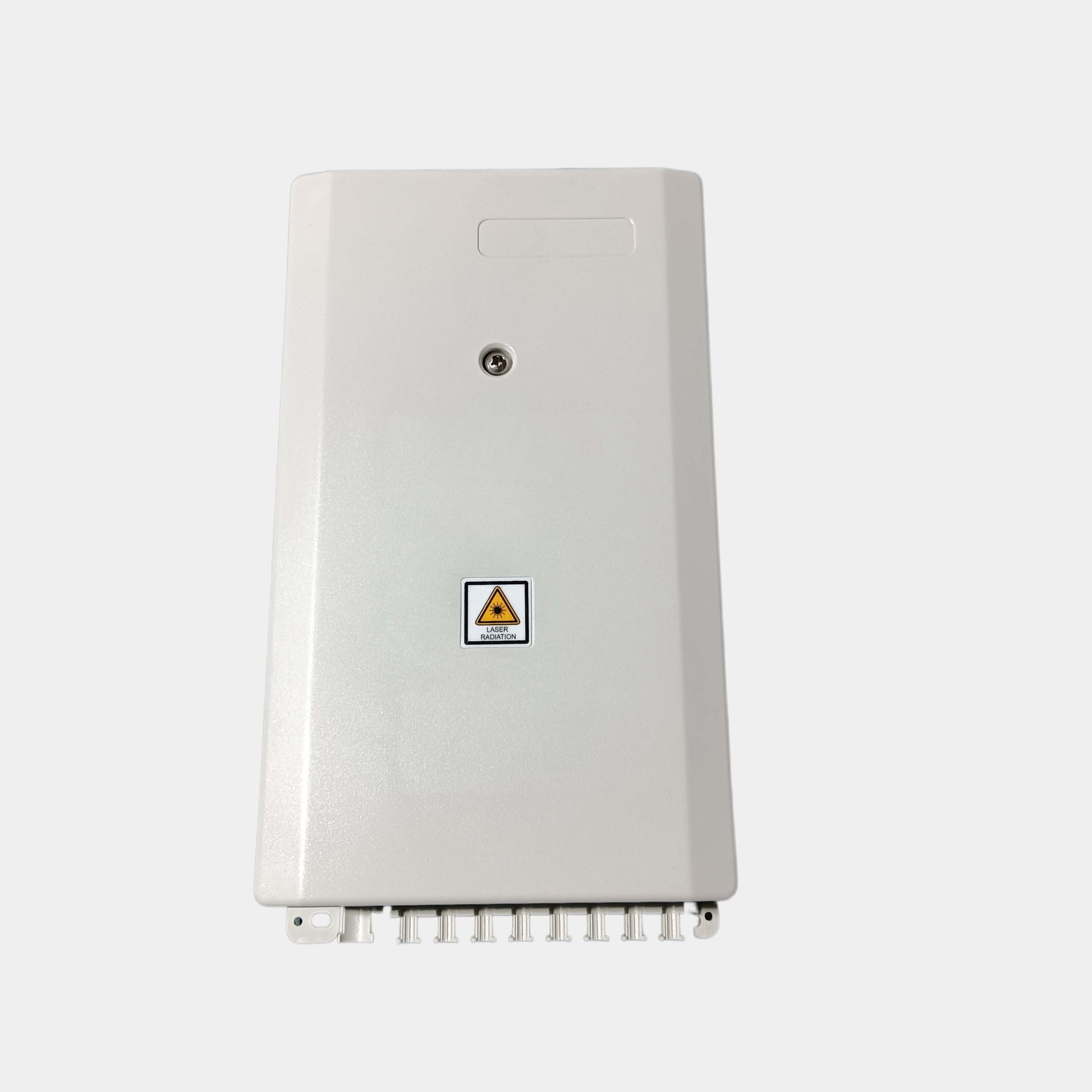

• 8-core-fiber-distribution-box-a1-main

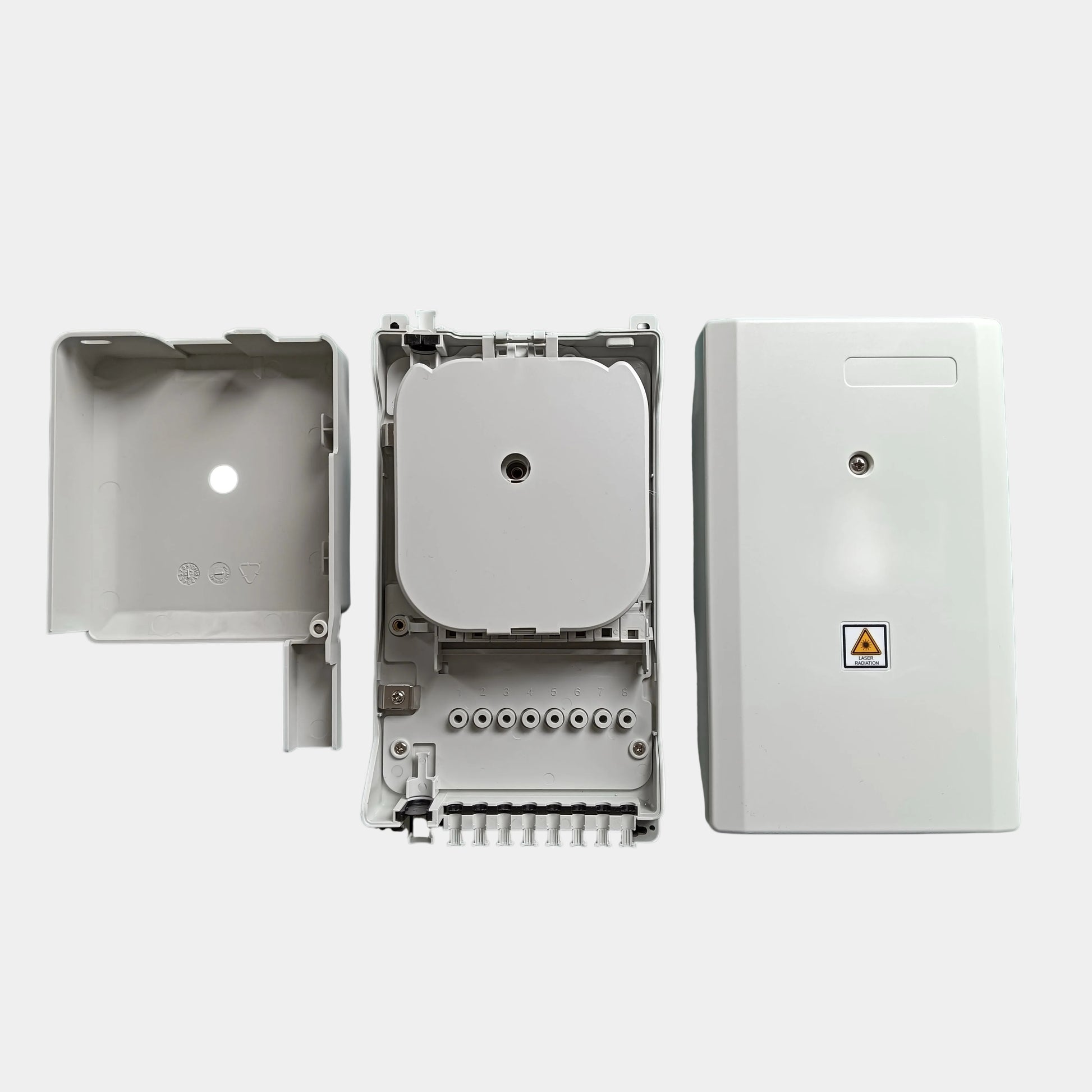

  • fdb-8-core-a1-open-status-2

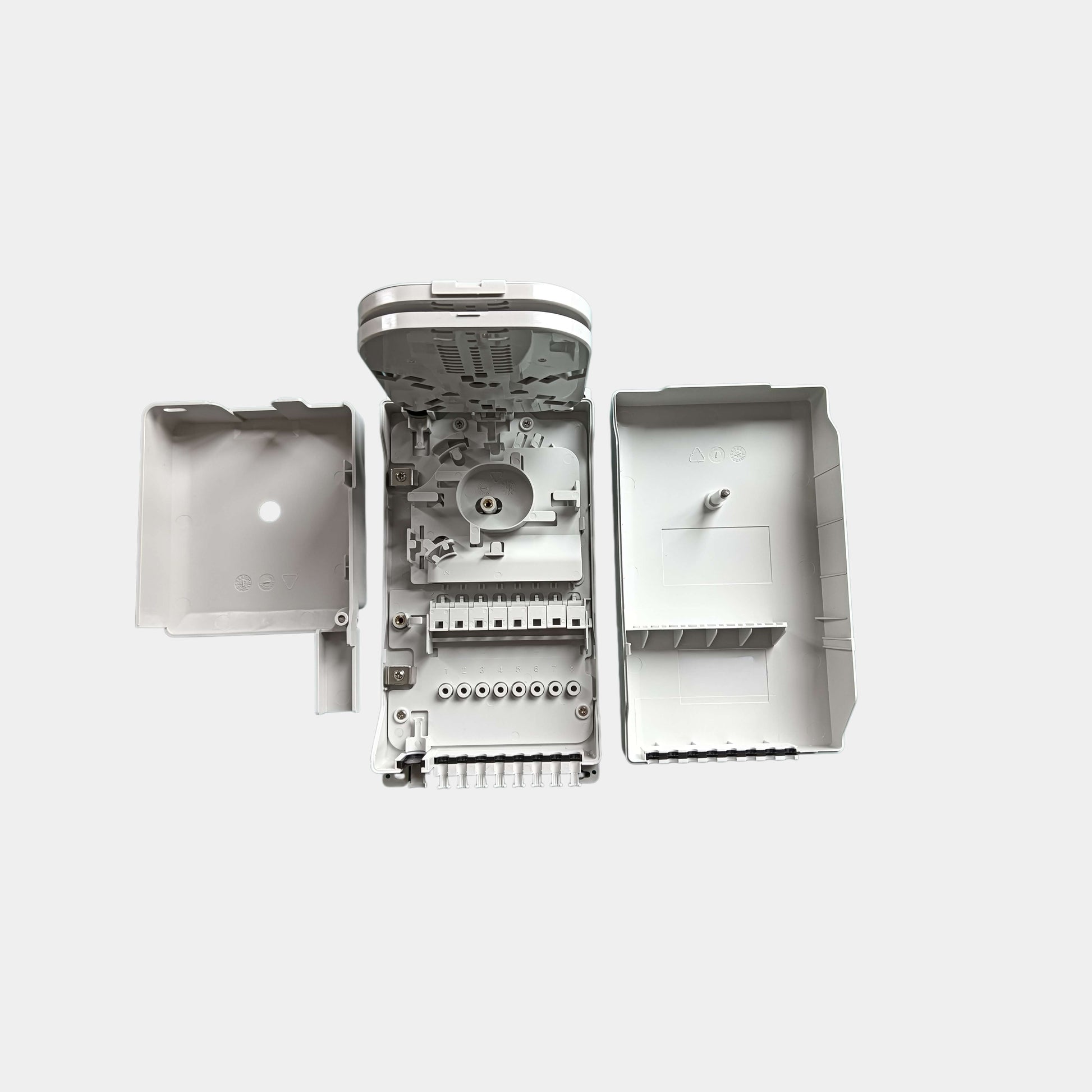

  • fdb-8-core-a1-open-status-1

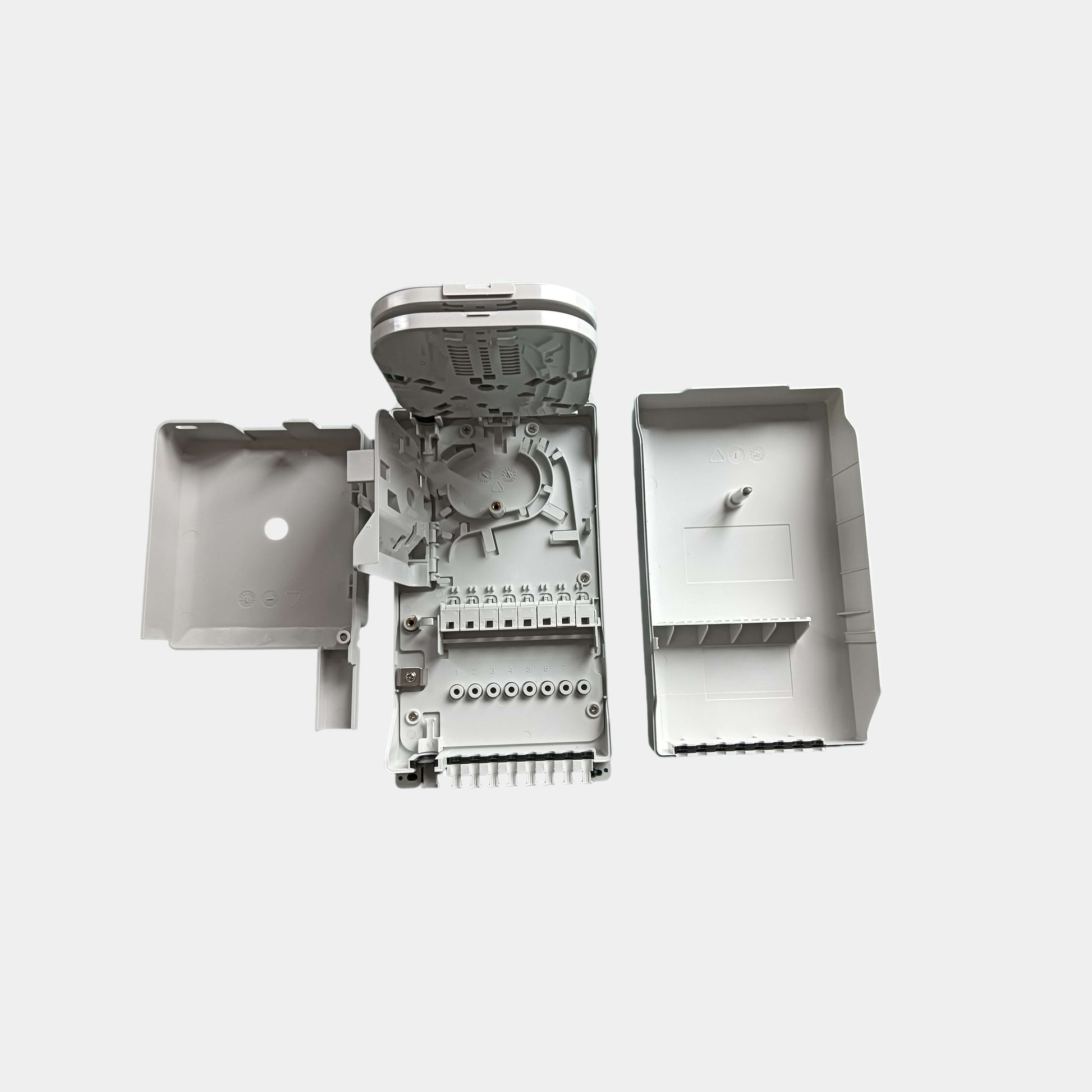

  • 8-core-fiber-distribution-box-a1-routing

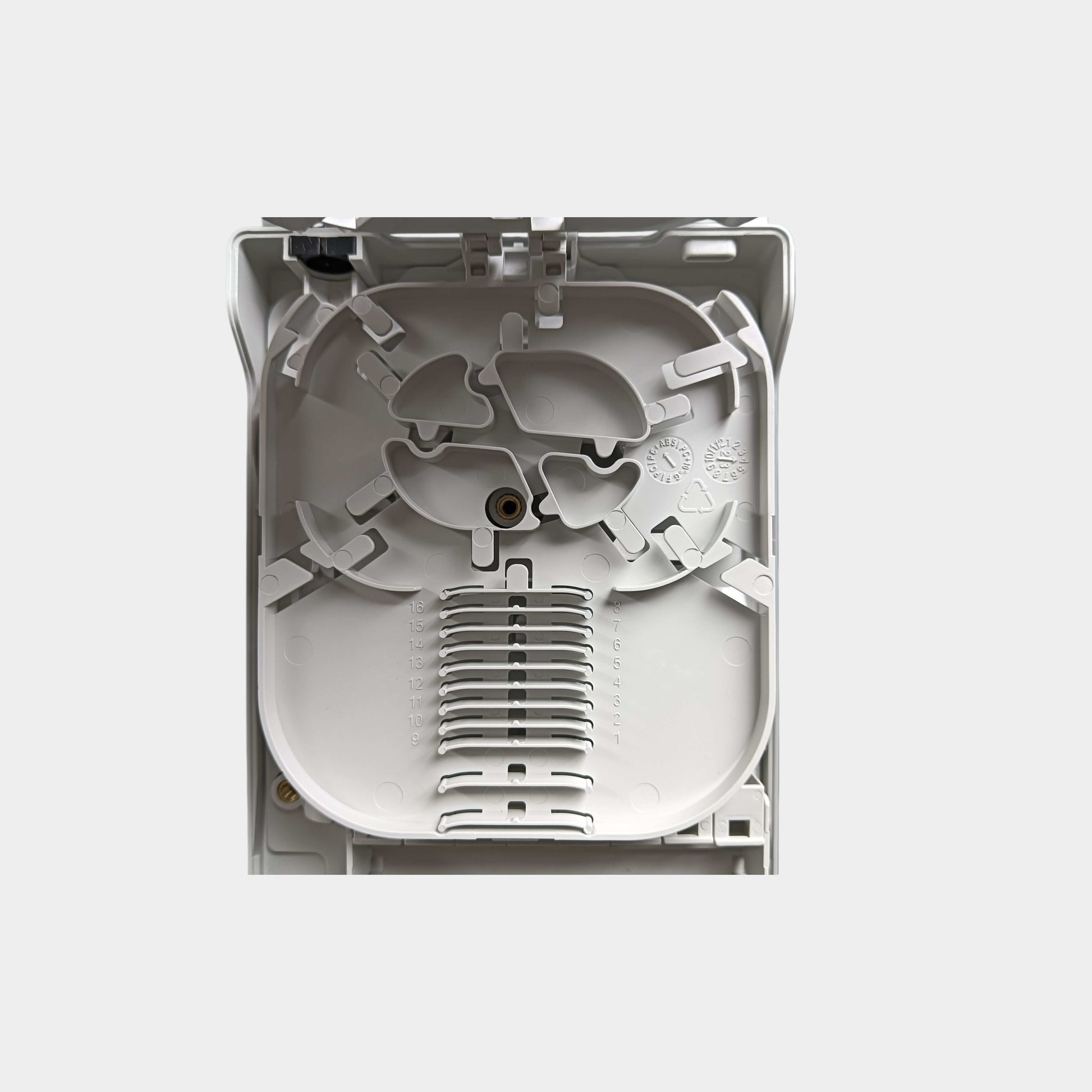

  • 8-core-fiber-distribution-box-a1-tray
1 6
Type: Fiber Distribution Box

8-Core Fiber Distribution Box, Indoor Floor/Wall Mount

Sku: BC-B-FDB-8-A01

8 Core fiber distribution box, ultra-slim 50mm depth, IP54, ABS, SC/LC adapters, tool-free installation.

Key Parameter

-- up to 8 core fiber patching

-- wall & pole mounting available

-- slim structure and fit for narrow space installation

-- optimized design for multi-operator sharing

-- feeder cable get through the box without signal loss

-- CE, RoSH, Reach ready

MoQ & Lead Time

MOQ: 500 pcs
Lead Time: 15–25 days
Sample: Available on request

Guarantee

  • 3 years quality guarantee
  • Timely response based on your time zone
  • Safe payment methods
Request Quote

Quick Spec

Capacity

8 Core

Dimension

235x125x50mm

Material

ABS

IP Level

IP54

Fire Retardant

UL94 V0

UV Resistance

YES

Certification

CE, RoHS, REACH

Installation Method

Wall & Pole mounted

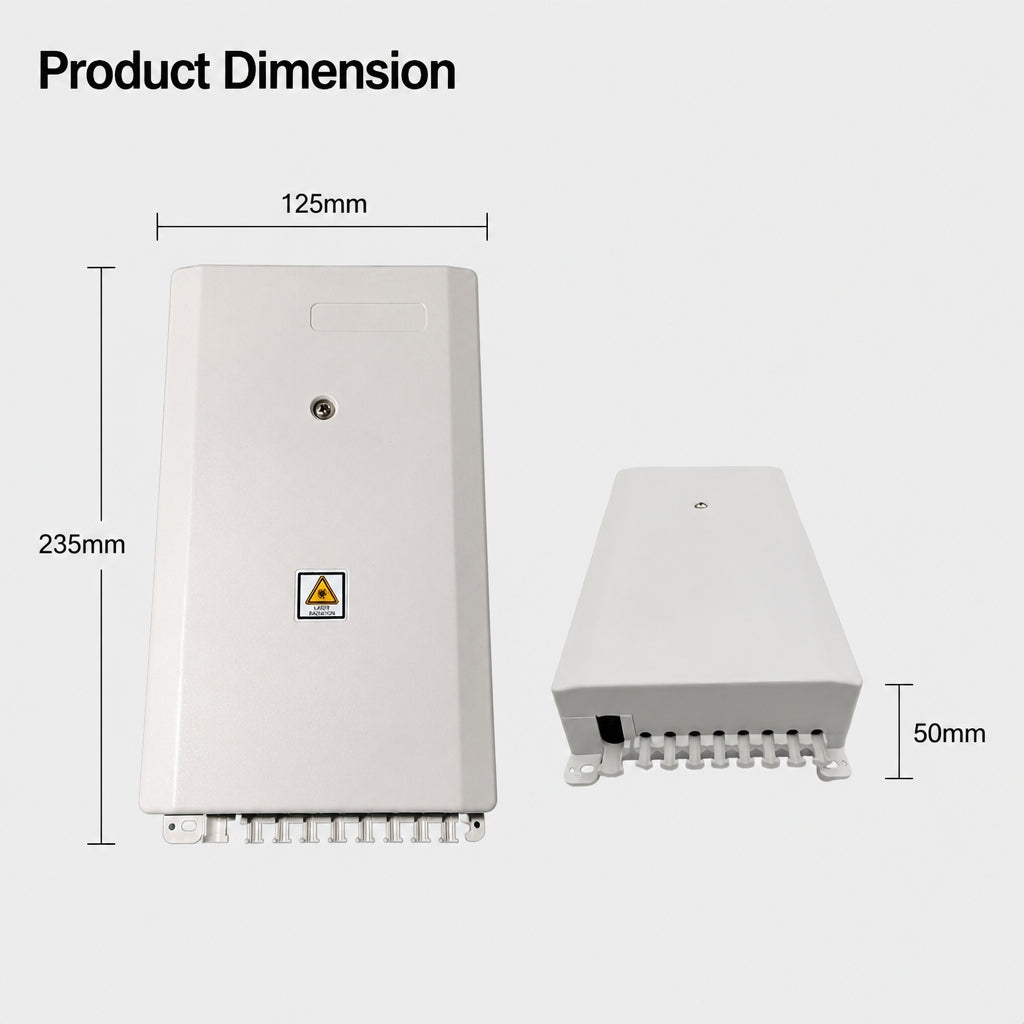

Dimension & Detail

  • Description

For indoor fiber distribution across multiple units or work areas, this 8-core fiber distribution box provides the structured termination point that keeps the fiber organized, protected, and accessible. It's designed for equipment rooms, wiring closets, and floor riser installations where fiber management standards matter.

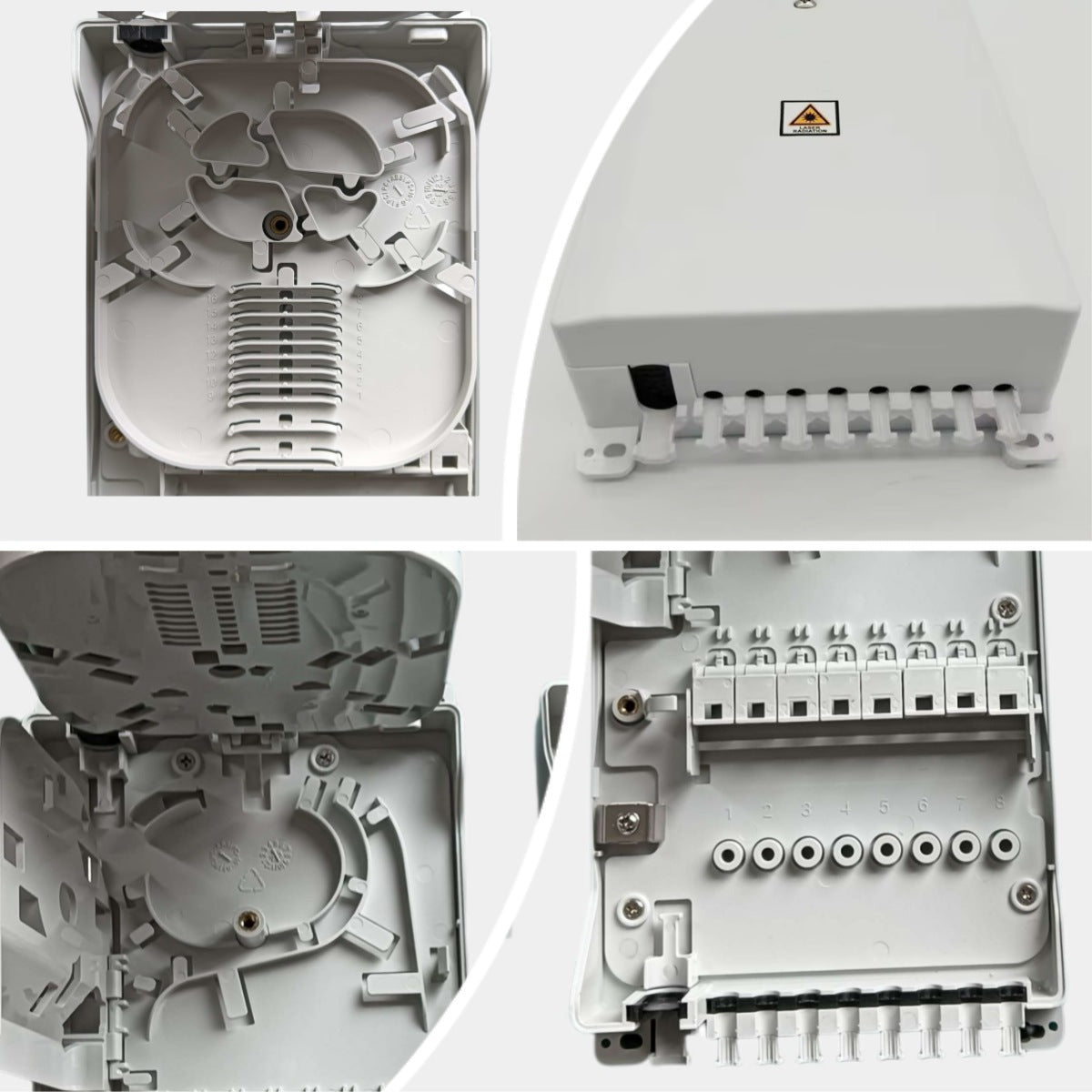

The 235x125x50mm body uses ABS plastic housing, and the internal splice tray or adapter panel provides full access for installation and maintenance. Dimensions: 235x125x50mm. Material: ABS. Protection: IP54 weatherproof. Capacity: 8 Core. Ports: 8. Connector: SC, LC.

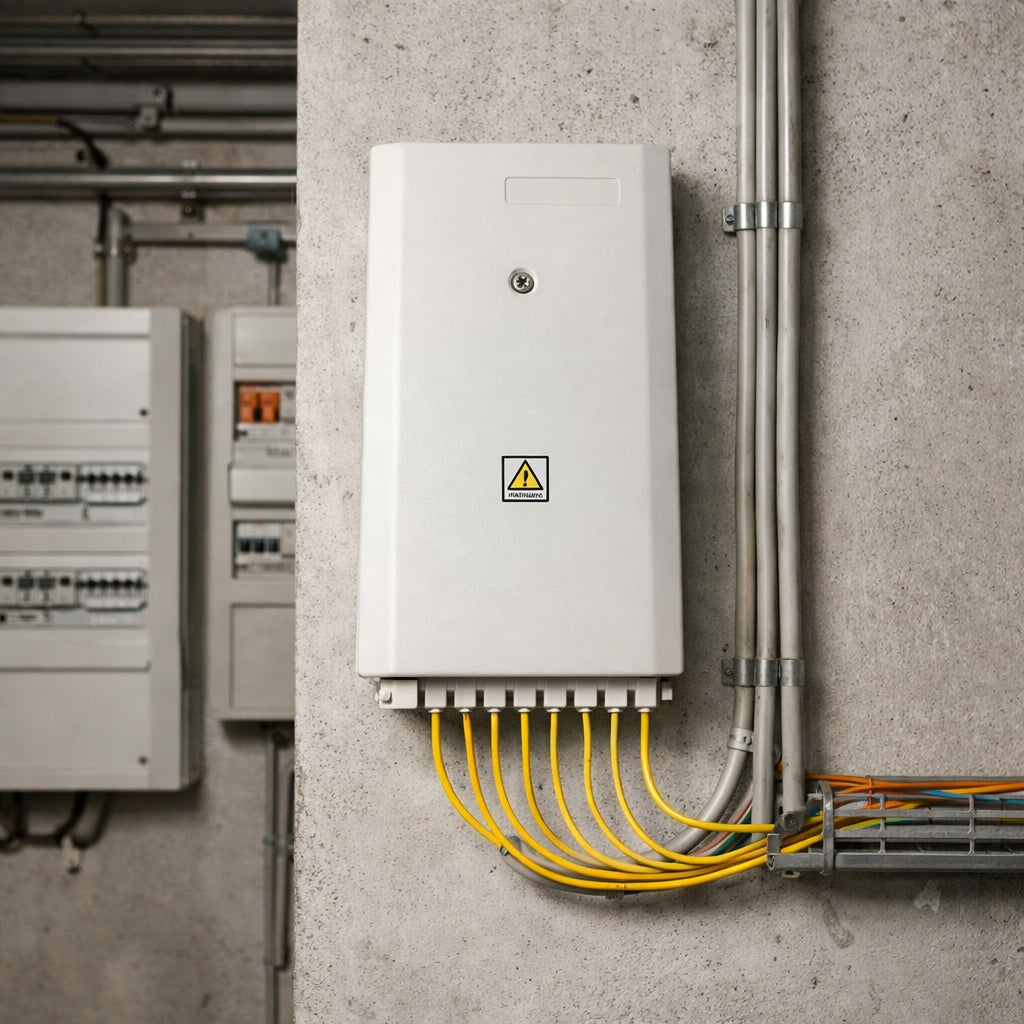

Installation is straightforward: mark the mounting positions, drill and secure with appropriate hardware, run the feeder cable through the cable gland, and connect to the adapter or splice panel. The cover hinges open for full access to the internal components. That's the entire procedure — no special tools or curing time required.

Typical applications:

- FTTH fiber-to-the-home network deployments

- residential and commercial building fiber deployments

- fiber optic network infrastructure projects

Technical summary:
Capacity: 8 Core
Dimensions: 235x125x50mm
Material: ABS
Protection: IP54
Connector type: SC, LC
Certifications: CE, ROHS, REACH
Fire rating: UL94 V0
Splitter support: 1 x 1pc PLC 1x8

Product Comparison

Show differences only
Product 8-core-fiber-distribution-box-a1-main
8-Core Fiber Distribution Box, Indoor Floor/Wall Mount
 Fiber Distribution Box 16 Core-A1
16-Core Fiber Optic Distribution Box IP65 FTTH
Dimension(L*W*D) 235x125x50mm 325*250*120mm
Capacity 8 Core 16 Core
Material ABS PC+ABS
Adapter 8 16
Splitter 1pc PLC 1x8 1pc PLC 1x16
IP Level IP54 IP65
UV Resistance YES YES
Fire Retardant V0 V0

F.A.Q.

Explore additional details in our FAQ section

Fiber Distribution Box
8 Core
PC+ABS
IP65
V0
Comply
Wall Mounted/Pole Mounted

1. Send your drawing, spec, or target configuration to Email: sales@bray-ct.com.
2. We review structure, capacity, and customization scope.
3. Confirm sample, quote, and production plan.
4. Move into batch production and shipment follow-up.

Do you want to customize product?

Tell us your thinking, we can make the design free of charge and customize it for your project.
